SKU: OEPS-8460

This kit allows you to follow the NeuroKit Course on Extracellular Electrophysiology Acquisition on your own schedule.

This course is designed to teach the fundamental principles that underlie data acquisition, from how electrodes detect voltages to closed-loop system design.

Upon purchasing, you will:

• Be shipped a kit with the hardware you need to follow the course

• Receive a welcome email with information on how to follow the course asynchronously

• Be enrolled as an async student

• Be added to our Discord server, where you can ask for help or more explanation

Once you have completed the exercises, you can choose to submit your answers and a final project for revision to be awarded a certificate of completion (if you complete the course materials within 3 weeks of your declared date). We can provide up to 2 certificates per NeuroKit purchased.

The EEA Course is fully online and relies on you to go through the materials yourself. You can follow this self-paced version or register your interest and apply for the synchronous course if you’d like to participate in the 5-day course taught by our team as part of the No Black Boxes NeuroKit programme.

The kit contains:

• A Teensy LC Microcontroller

• USB cable

• 2 x AA Battery holder

• Full-size breadboard

• Jumper wires

• Operational Amplifiers

• Instrumentation Amplifiers

• Resistor Assortment

• Capacitor Assortment

• Electrodes

• Electrode Cabling

• Electrode to Breadboard Adaptor

• LEDs

You will need to provide:

• Batteries (4xAA)

• Oscilloscope

• Multimeter

For more information please contact training[at] oeps.tech.

This course used to be part of the Cajal Advanced Neuroscience Training Programme.

SKU: OEPS-9104

Receive the Open Ephys Acquisition Board (3rd Generation) and I/O board you’ll need to start our Acquisition Board Training. This training bundle has a discount compared to buying the items separately.

Includes:

• 1x Open Ephys Acquisition Board (3rd Generation)

• 1x I/O Board with HDMI

• 1x In-depth training by members of our team on how to integrate the board into your set-up.

For more information on training, read our training page or contact training@oeps.tech.

Note: The invoice will contain a single item, the training module is not invoiced separately.

Documentation

Visit the Acquisition Board docs for more information.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-9006

Main components of the ONIX acquisition system for use with a variety of multimodal headstages. This system can acquire from and control many devices including:

• passive probes (e.g. tetrodes, silicon probe arrays, tungsten microwires, steel EEG wires, etc)using headstage-64.

• neuropixels probes using our neuropixels-1.0 or neuropixels-2.0beta headstages

• miniscopes such as the UCLA Miniscope v4

Package includes:

• 1 ONIX PCIe Host

• 1 ONIX PCIe Analog and Digital Expansion (breakout board)

• 3 Cable (MMCX to MMCX) 7.0 ft (2.13 meter)

• 1 Cable (SDR to SDR 26 POS) 6.6 ft (2.0 meter)

Documentation

Visit the ONIX hardware docs for more information.

Visit the ONIX breakout board guide in the OpenEphys.Onix1 docs to acquire breakout board data using Bonsai.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info[a]oeps.tech.

SKU: OEPS-9005

Main components of the ONIX acquisition system and fully-programmed PC for use with a variety of multimodal headstages. This system can acquire from and control many devices including:

• passive probes (e.g. tetrodes, silicon probe arrays, tungsten microwires, steel EEG wires, etc)using headstage-64.

• neuropixels probes using our neuropixels-1.0 or neuropixels-2.0beta headstages

• miniscopes such as the UCLA Miniscope v4

Package includes:

• 1 pre-programmed Windows PC for use with ONIX - specs below

• 1 ONIX PCIe Host

• 1 ONIX PCIe Analog and Digital Expansion (breakout board)

• 3 Cable (MMCX to MMCX) 7.0 ft (2.13 meter)

• 1 Cable (SDR to SDR 26 POS) 6.6 ft (2.0 meter)

Documentation

Visit the ONIX hardware docs for more information.

Visit the ONIX breakout board guide in the OpenEphys.Onix1 docs to acquire breakout board data using Bonsai.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info[a]oeps.tech.

SKU: OEPS-7741

64-channel headstage for the ONIX acquisition system.

Can be used to record with most passive probes (e.g. tetrodes, silicon probe arrays, tungsten microwires, steel EEG wires, etc)using a mating connector or adapter. For tetrode recordings, we recommend the ShuttleDrive and ShuttleDrive 64-ch Hirose EIB.

The low profile greatly reduces torque, minimizing the impact of the headstage on animals and promoting naturalistic behavior.

Key aspects:

• 1.5 g and flat, round, low-torque design

• Fully compatible with ONIX

• 64 analog ephys channels and 3 auxiliary channels sampled at 30 kHz per channel

• BNO055 9-axis IMU for real-time, 3D orientation tracking for torque-free commutation

• Four TS4231 light to digital converters for real-time, 3D positional tracking using 3D tracking lighthouses

• An electrical stimulator (current controlled, +/-15V compliance, automatic electrode discharge)

• Two optical stimulators (800 mA per channel)

Package includes:

• 1 Low-Profile ONIX Headstage 64ch

• 1 micro-coax tether (X.FL to SMA) 8.2 ft (2.5 m)

Note: The ground and reference connections are tied together by default using a 0-Ω jumper resistor that can be removed.

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info[a]oeps.tech.

You can also request the Adapter Hirose to Omnetics 64ch or 32ch.

SKU: OEPS-7743

Headstage to record from Neuropixels 1.0 probes with the ONIX acquisition system.

Key aspects:

• Fully compatible with ONIX

• Single Neuropixels 1.0 probe

• 30 kHz sampling frequency

• BNO055 9-axis IMU for real-time, 3D orientation tracking for torque-free commutation

Package includes:

• 1 ONIX Headstage Neuropixels 1.0

• 1 micro-coax tether (X.FL to SMA) 8.2 ft (2.5 m)

Please note this headstage does not have real-time, 3D position tracking or stimulation capabilities

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info[a]oeps.tech.

SKU: OEPS-7745

Headstage to record from Neuropixels 2.0 probes with the ONIX acquisition system. This headstage is not compatible with 2.0 beta probes.

Key aspects:

• Fully compatible with ONIX

• Record from two Neuropixels 2.0 probes per headstage

• 30 kHz sampling frequency

• BNO055 9-axis IMU for real-time 3D orientation tracking for torque-free commutation

Package includes:

• 1 ONIX Headstage Neuropixels 2.0e

• 1 micro-coax tether (X.FL to SMA) 8.2 ft (2.5 m)

Please note this headstage does not have real-time 3D position tracking or stimulation capabilities.

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info[a]oeps.tech.

SKU: OEPS-7746

32-channel bi-directional recording and stimulation headstage for the ONIX acquisition system.

Can be used to record from and stimulate the brain using silicon probes that have a compatible Omnetics connector, other passive probes using an adapter or wire electrodes via an electrode interface board such as the OEPS-6809 ShuttleDrive 32-ch Omnetics EIB.

Key aspects:

• Fully compatible with ONIX to achieve submillisecond closed loop stimulation times

• Record and stimulate up to 32 channels per headstage

• Provides ephys-synchronized stimulation timing data

• 30 kHz sampling frequency

• Omnetics A79025 (36 pins, 4 guide posts) connector

• Uses a mini-coax 1.1 mm diameter tether (U.FL to SMA)

Package includes:

• 1x OEPS-7746 ONIX Headstage 32ch Stim/Record

• 1x OEPS-5501 Coaxial Tether (U.FL to SMA) mini 4.9ft (1.5m)

Please note this headstage does not have real-time, 3D orientation or 3D position tracking capabilities.

Note: The ground and reference connections are tied together by default using a 0-Ω jumper resistor that can be removed.

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info[a]oeps.tech.

SKU: OEPS-7200

Adapter to interface OEPS-7741 - ONIX Headstage Ephys 64ch with 64ch Omnetics-based silicon probes.

• Features two Omnetics A79025 connectors (36 pins, 4 guide posts) which mate with two 32-channel (36-pin, 4 guide holes) Omnetics connectors (NPD-36-XX-GS such as A79026) placed at the standard distance for most 64ch silicon probes (0.076in).

• Has additional vias to expose the A, C0, C1 and ES channels on the OEPS-7741 - ONIX Headstage Ephys 64ch, as well as a R and a G via for flexibility.

• Weighs 1.03 g

Information on channel mapping can be consulted here.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech

SKU: OEPS-5500

Light and thin micro-coax tether for naturalistic behaviors, transmits power and data between headstage and breakout board.

• ~0.31 mm diameter, 0.37 g/m

• 8.2 ft (2.5 m) in length

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info[a]oeps.tech.

SKU: OEPS-7709

Laser-emitting lighthouses or ‘base stations’ for use with compatible ONIX headstages to track 3D spatial position.

Package includes:

• 2 HTC Vive Base Stations

• 1 Lighthouse Sync Cable (3.5 mm Stereo Jack Plug to Plug) 3.3 ft (1.0 meter)

• 2 EU power adaptors. Please note you will need to provide an adapter if using outside of EU.

• Mounting screw not included. Each device has a standard 1/4"-20 UNC threaded mounting hole.

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info[a]oeps.tech.

SKU: OEPS-7744

Discontinued: This product has been discontinued and will remain available for purchase until all remaining stock is sold.

Headstage to record from Neuropixels 2.0 beta probes with the ONIX acquisition system. We have made these available for users that got 2.0 beta probes before 2.0 probes were made available publicly.

Key aspects:

• Fully compatible with ONIX

• Record from two Neuropixels 2.0 beta probes per headstage

• 30 kHz sampling frequency

• BNO055 9-axis IMU for real-time 3D orientation tracking for torque-free commutation

Package includes:

• 1 ONIX Headstage Neuropixels 2.0e (for 2.0 beta probes)

• 1 micro-coax tether (X.FL to SMA) 8.2 ft (2.5 m)

Please note this headstage does not have real-time 3D position tracking or stimulation capabilities.

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info[a]oeps.tech.

SKU: OEPS-9029

The Open Ephys Acquisition Board can stream up to 512 channels of neural data to a computer via USB.

👉 Click here to purchase the Acquisition Board in combination with 1:1 training by members of the Open Ephys team.

New Features in 3rd Generation:

• Acquire 3D orientation data from headstages containing a 9-axis inertial measurement unit.

• Fully backwards-compatible - you can use your existing headstages.

• Use with our 3D-capable headstages to drive our torque-free SPI commutator.

• Direct compatibility with Harp family of devices.

• Faster boot and headstage recognition, improved analog front-end, and seamless integration in the Open Ephys GUI v1.0 and above.

Package includes:

• 1 Open Ephys Acquisition Board (3rd Generation)

• 1 wall adapter (5V)

• 1 USB 3.0 cable

Sold separately:

• 1 or more RHD SPI headstages from our range (low-profile 64 ch monopolar, vertical-profile 32 ch monopolar or vertical-profile 16 ch bipolar), or any compatible ones from Intan. You need our 3D-capable headstages to drive our torque-free SPI commutator.

• 1 or more SPI tethers

• 1 of our torque-free SPI commutator (for tangle-free tethers)

• 1 or more I/O boards (for interfacing with auxiliary devices)

• Standard HDMI cables (for the I/O boards)

If you don’t have headstages or tethers yet, they are available bundled with the board in our Open Ephys Starter Kit.

Documentation

Visit the Acquisition Board docs for more information.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info[a]oeps.tech.

SKU: OEPS-9114-9116 and SKU: OEPS-9155-9157

Our Starter Bundles 3D include all of the items required to immediately start working with the Open Ephys Acquisition Board (3rd Generation) and our torque-free commutator for freely-behaving recordings. Click here to learn more about the features of the system, and scroll down the page to read more about each option and what is included in each bundle.

Use the selection menus below to adapt your Starter Bundle to:

• Suit the electrode array you will be using by choosing between the three headstage options in our range.

• Include Training by members of our team.

Looking for our classic bundles? Our acute Starter Bundles are more suitable for short recordings.

Documentation

Visit the Acquisition Board docs for more information.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact info@oeps.tech.

SKU: OEPS-9111-9113 and SKU: OEPS-9151-9153

Our Starter Bundles include all of the items required to immediately start working with the Open Ephys Acquisition Board (3rd Generation) for short or acute recordings. Click here to learn more about the features of the system, and scroll down the page to read more about each option and what is included in each bundle.

Use the selection menus below to adapt your Starter Bundle to:

• Suit the electrode array you will be using by choosing between the three options in our range.

• Include Training by members of our team.

Looking for 3D capabilities? Our Starter Bundle 3D are more suitable for freely-behaving recordings.

Documentation

Visit the Acquisition Board docs for more information.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact info@oeps.tech.

SKU: OEPS-6571 (3D capable)
SKU: OEPS-6570 (Accelerometer)

The low profile greatly reduces torque, minimizing the impact of the headstage on animals. Mice can lower their heads and are free to perform most behaviours, such as licking/nosepoke paradigms.

Compatible with the ShuttleDrive and the ShuttleDrive 64-ch Hirose EIB, though its low weight and features make this headstage very appealing for a large spectrum of usage.

Key aspects:

• 0.92 g (0.46 g lighter than 64ch vertical-profile Omnetics-based headstages)

• Exclusive 9-axis inertial measurement unit (IMU) allowing autonomous drive of the torque-free SPI commutator.

• Compatible with the Open Ephys Acquisition Board and all Intan Rhythm systems

• Includes 2 infrared LEDs for tracking purposes

• Flat, round, low-torque design

Available variants:

• OEPS-6571 - 64 channel headstage with full 3D capabilities (9-axis IMU) for head positioning recording and the ability to autonomously drive the torque-free SPI commutator.

• OEPS-6570 - 64 channels headstage with a 3-axis accelerometer. No 3D capabilities.

Package includes:

• 1 Low-Profile SPI Headstage 64ch of the variant you choose.

Notes:

• The 3D capabilities require an Open Ephys Acquisition Board (3rd Generation) to work.

• The 3D capabilities can’t be used when operating the headstage combined with a dual headstage adapter.

• The ground and reference connections are different depending on the version of the device:

• Version 1.0 - Not connected

• Version 1.1 and onwards - Tied together by default using a 0-Ω jumper resistor that can be removed.

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info[a]oeps.tech.

SKU: OEPS-6576 (3D capable)
SKU: OEPS-6573 (Accelerometer)

The traditional profile headstage for 32ch Omnetics-based silicon probes.

Consider our low-profile headstage 64ch that greatly reduces torque, minimizing the impact of the headstage on animals.

Key aspects:

• Exclusive 9-axis inertial measurement unit (IMU) allowing autonomous drive of the torque-free SPI commutator.

• Compatible with the Open Ephys Acquisition Board and all Intan Rhythm systems

• Omnetics A79025 (36 pins, 4 guide posts) connector

Available variants:

• OEPS-6576 - 32 channel headstage with full 3D capabilities (9-axis IMU) for head positioning recording and ability to autonomously drive the torque-free SPI commutator.

• OEPS-6573 - 32 channel headstage with a 3-axis accelerometer. No 3D capabilities.

Package includes:

• 1 SPI Headstage 32ch of the variant you choose.

Notes:

• The 3D capabilities require an Open Ephys Acquisition Board (3rd Generation) to work.

• The 3D capabilities can’t be used when operating the headstage combined with a dual headstage adapter.

• The ground and reference connections are tied together by default using a 0-Ω jumper resistor that can be removed.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info[a]oeps.tech.

SKU: OEPS-6577 (3D capable)
SKU: OEPS-6574 (Accelerometer)

The traditional profile headstage for Omnetics-based silicon probes, with bipolar inputs.

These 16-channel bipolar-input recording headstages have independent in+ and in- inputs on each amplifier channel for paired differential recordings. This is optimal for recordings with pairs of electrodes of similar impedances, such as surface electromyography (EMG).

Key aspects:

• Exclusive 9-axis inertial measurement unit (IMU) allowing autonomous drive of the torque-free SPI commutator.

• Compatible with the Open Ephys Acquisition Board and all Intan Rhythm systems

• Omnetics A79025 (36 pins, 4 guide posts) connector

Available variants:

• OEPS-6577 - 16 channel headstage with full 3D capabilities (9-axis IMU) for head positioning recording and ability to autonomously drive the torque-free SPI commutator.

• OEPS-6574 - 16 channel headstage with a 3-axis accelerometer. No 3D capabilities.

Package includes:

• 1 SPI Headstage 16ch bipolar of the variant you choose.

Notes:

• The 3D capabilities require an Open Ephys Acquisition Board (3rd Generation) to work.

• The 3D capabilities can’t be used when operating the headstage combined with a dual headstage adapter.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info[a]oeps.tech.

SKU: OEPS-6501 (Assembled)
SKU: OEPS-6502 (Bare PCB)

The I/O board is used for synchronizing the Open Ephys Acquisition Board with external devices. You can either purchase the bare PCB (without connectors) or the assembled version.

Package includes:

• 1x I/O board

If you purchase the version without connectors, you must supply:

• 8x through-hole vertical BNC connectors per board ($2.73 each, #A97564-ND)

• 1x surface-mount HDMI connector per board ($0.73, #609-4614-1-ND cut tape)

For assembly instructions, please refer to the documentation.

This device requires additional components to operate. Please check the device connectivity list to purchase any cables, tethers and power supplies you might need.


If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via e-mail.

SKU: OEPS-1216

The Harp Behavior device can control and acquire from various behavioral peripherals such as pokes with water valves, RGB LEDs, LEDs, cameras, speakers, servo motors, rotary encoders, and many more.

You can connect your current setup using the generic IOs, analog inputs, and available port breakouts, and you'll receive automatic timestamped data for free.

Main features:

• Timestamp inputs and outputs in hardware

• 1 ms transmission latency to the PC

• Precise control of stimulus duration

• 3x port connectors for pokes (Port0, Port1, Port2) [Ethernet port], including

  • LED drive (up to 100 mA)

  • 12V water valve (up to 1 A)

  • Extra digital input used for beam break

• 2x LED outputs with accurate current control up to 100mA (LED0 and LED1) [screw terminal]

• 2x LED RGB drives (5V) (RGB0, RGB1) [3x header pins] compatible with Neopixels and WS2812B

• 4x digital outputs (5V) with dedicated pulse interval in milliseconds (DO0-DO3) [screw terminal]

• 4x PWMs (5V) with configurable duty cycle and frequency up to 10 kHz (DO0-DO3) [screw terminal]

• 2x camera controls of the trigger line (DO0, DO1) [screw terminal] with dedicated events

• 2x servo motor drivers (DO2, DO3) [screw terminal]

• 1x digital input (5V tolerant) (DI3) [screw terminal]

• 2x analog input (5V) at 1kHz for additional sensors (AO0, AO1) [screw terminal]

• 1x timestamp input for Harp synchronization (Clk In) [3.5mm stereo jack]

• 1x USB2.0 for connection to the PC [USB-C]

• 1x 12V power supply input jack

• Runs in Bonsai, a free and open-source visual programming language, or using a dedicated GUI for standalone use

Package contains:

• 1x OEPS-1216 Harp Behavior

• 1x OEPS-5905 Power supply 12V 1A

Interface:

Harp uses Bonsai as the main tool for visual programming to interface in real-time with the devices, declare the state machines, and create closed-loops.

The Harp Behavior also has a graphical user interface.

More information about the interface and available functionality (API) can be found here.

A Python package is available to parse and process the received and logged data.

Note:

This Harp device may need Harp peripherals to achieve its intended function. Multiple Harp devices can be connected to a Harp Timestamp Generator or Open Ephys Acquisition Board (3rd Generation) to continuously self-synchronize so that they all share the same acquisition clock. Check out this overview of Harp devices and peripherals available in our store, or get our Harp Behavior Starter Kit with everything included.

Please also check the device connectivity list to purchase any cables, tethers and power supplies you might need to operate the device.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-9080

This Harp Behavior Starter Kit includes many Harp peripherals and accessories to start experimenting with Harp Behavior.

Package contains:

• 1x OEPS-1216 - Harp Behavior

• 1x OEPS-3005 - Harp Behavior - Breakout

• 2x OEPS-3008 - Harp Behavior - Mice Poke w/ 3D

• 1x OEPS-3011 - Harp Behavior - Photodiode (analog and digital)

• Accessories:

  • 1x Harp Behavior - Rotary encoder

  • 1x Harp Behavior - Speaker

  • 1x servo motor

  • 2x LEDs

• Includes all the necessary cables and power supply:

  • 1x OEPS-5905 - Power supply 12V 1A 12W Round (2.1 ID 5.5 OD),

  • 1x OEPS-5115 - Cable (USB2.0 Plug A to Plug C) 3.3ft (1.0m)

  • 3x OEPS-5170 - Cable (RJ45 Plug to RJ45 Plug) 1.6ft (0.5m)

  • 1x OEPS-5121 - Cable (3.5 mm Stereo Jack Plug to Plug) 3.9ft (1.2m)

Please note accessories in this kit are provided for testing functionality and prototyping before choosing appropriate rotary encoders, speakers, servo motors or LEDs for your application.

Multiple Harp devices can be connected to a Harp Timestamp Generator or Open Ephys Acquisition Board (3rd Generation) to continuously self-synchronize so that they all share the same acquisition clock. Check out this overview of Harp devices and peripherals available in our store and the device connectivity list to purchase any cables, tethers and power supplies you might need to operate the devices.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-3005

This Harp peripheral connects to any of the three Ports on a Harp Behavior to provide access to the port's individual connections via wire terminals.

This Harp peripheral needs a Harp device to achieve its intended function. Multiple Harp devices can be connected to a Harp Timestamp Generator or Open Ephys Acquisition Board (3rd Generation) to continuously self-synchronize so that they all share the same acquisition clock. Check out this overview of Harp devices and peripherals available in our store.

Please also check the device connectivity list to purchase any cables, tethers and power supplies you might need to operate the device.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-3007

This Harp peripheral connects to any of the three Ports on a Harp Behavior. Includes:

• Infrared beam for poke detection (poke 3D not included)

• Control of 2 integrated LEDs

• 12V valve control (valve not included)

This Harp peripheral needs a Harp device to achieve its intended function. Multiple Harp devices can be connected to a Harp Timestamp Generator or Open Ephys Acquisition Board (3rd Generation) to continuously self-synchronize so that they all share the same acquisition clock. Check out this overview of Harp devices and peripherals available in our store.

Please also check the device connectivity list to purchase any cables, tethers and power supplies you might need to operate the device.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-3008

This Harp peripheral connects to any of the three Ports on a Harp Behavior. Includes:

• Infrared beam for poke detection (includes 3D mice poke)

• Control of 2 integrated LEDs

• 12V valve control (valve not included)

This Harp peripheral needs a Harp device to achieve its intended function. Multiple Harp devices can be connected to a Harp Timestamp Generator or Open Ephys Acquisition Board (3rd Generation) to continuously self-synchronize so that they all share the same acquisition clock. Check out this overview of Harp devices and peripherals available in our store.

Please also check the device connectivity list to purchase any cables, tethers and power supplies you might need to operate the device.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-3010

This Harp peripheral connects to any of the three Ports on a Harp Behavior. Includes:

• Infrared beam for poke detection (includes 3D mice poke)

• Control of 2 integrated LEDs

• 12V valve control (includes valve)

This Harp peripheral needs a Harp device to achieve its intended function. Multiple Harp devices can be connected to a Harp Timestamp Generator or Open Ephys Acquisition Board (3rd Generation) to continuously self-synchronize so that they all share the same acquisition clock. Check out this overview of Harp devices and peripherals available in our store.

Please also check the device connectivity list to purchase any cables, tethers and power supplies you might need to operate the device.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-3011

This Harp peripheral connects to Harp Behavior.

• Use the switch to select analog or digital output mode

• Adjust the screw to set the threshold for the digital mode

This Harp peripheral needs a Harp device to achieve its intended function. Multiple Harp devices can be connected to a Harp Timestamp Generator or Open Ephys Acquisition Board (3rd Generation) to continuously self-synchronize so that they all share the same acquisition clock. Check out this overview of Harp devices and peripherals available in our store.

Please also check the device connectivity list to purchase any cables, tethers and power supplies you might need to operate the device.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-1158

This Harp device provides a clock that can be shared among Harp devices to synchronize them with precision of tens of microseconds.

• Provides the same clock output to up to 6 Harp devices

• Clock start can be programmed (zero or otherwise)

• 24h battery to last through power outages without interrupting the clock. Battery re-charges during operation

• Device can be locked to avoid resetting the clock by mistake

• 1x timestamp input for Harp synchronization (Clk In) [3.5mm stereo jack]

• 1x USB2.0 for connection to the PC [USB-C]

This Harp device needs to be connected to other Harp devices to achieve its intended function. Check out this overview of Harp devices and peripherals available in our store.

Please also check the device connectivity list to purchase any cables, tethers and power supplies you might need to operate the device.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-3020

This Harp device can be connected to any of the Input/Output HDMI ports on the Open Ephys Acquistion Board 2nd Generation and to the timestamp input of another Harp device so the ephys clock is shared with the Harp device. The Open Ephys Acquistion Board 3rd Generation integrates this functionality without the need for an external Harp Timestamp Generator (for Acquisition Board).

This removes the need to time align ephys and behavioral timestamps post-hoc, since all input and output events in the behavioral setup are timestamped on the same ephys clock as the neural and auxiliary signals acquired by the Open Ephys Acquisition Board.

• 1x timestamp output for Harp synchronization (Clk Out) [3.5mm stereo jack]

• Exposes 3x channels of the Input/Output HDMI on Open Ephys Acquisition Board so they can be accessed when the Harp Timestamp Generator (for Acquisition Board) is connected.

This Harp device needs to be connected to an Open Ephys Acquisition Board 2nd Generation and to another Harp device to achieve its intended function. To connect multiple Harp devices to the Open Ephys Acquisition Board 2nd Generation, connect the Harp Timestamp Generator (for Acquisition Board) to a Harp Timestamp Generator so that all devices share the same acquisition clock. Check out this overview of Harp devices and peripherals available in our store.

Please also check the device connectivity list to purchase any cables, tethers and power supplies you might need to operate the device.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-7413

The open-source Miniscope V4.5 used for 1 photon imaging in freely behaving animals. This version 4.5 includes voltage detection circuitry for compatibility with an upcoming revision of the Miniscope DAQ.

• > 1mm diameter field of view and ~ 1mm working distance

• +/- 200um electronic focal adjustment

• All achromatic optics

• 2.6 grams and 22 mm tall

• 470 nm excitation LED

• Absolute head orientation sensor

• Requires ~1/5th the excitation power of previous systems

• Uses a single coaxial cable (down to 1.1 mm in diameter) for power, communication, and data

• Works in Bonsai and with the Miniscope DAQ software

Package includes:

• 1x Assembled V4.5 Miniscope

This device requires additional components to operate. Please check the device connectivity list to purchase any cables, tethers and power supplies you might need.

You will also need a Miniscope DAQ or an ONIX System to complete your experimental setup, and baseplates for implantation. You can optionally get a Torque-free Coaxial Commutator (works in Bonsai).

Looking just for a replacement PCB? You can get it here.

The filters used in this scope are:
- ET470/40x excitation filter

- ET525/50m emission filter

- T495lpxr dichroic mirror

If you need a different excitation LED, please get in touch with us.

Documentation

Visit the Miniscope documentation maintained by Open Ephys for more information.

Support

We provide support for the assembled Miniscope V4, to help you troubleshoot and answer your questions, in close collaboration with the UCLA Miniscope team.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-7414

This kit has all you need to assemble a full Miniscope V4.5. The open-source Miniscope V4.5 is a microscope that is mounted directly on the animal and used for 1 photon imaging in freely behaving animals.

We also offer fully assembled Miniscope V4.

Package includes:

• 1x Assembled rigid-flex PCB V4.5

  • Tested and programmed

  • 470 nm excitation LED. If you need a different excitation LED, please get in touch with us. We can customize this assembly kit for red-shifted opsins such as mCherry, RCaMP, jRGECO1a, PinkyCaMP, etc.

• 1x Set of machined parts

  • 1x Objective Module

  • 1x Emission Module

  • 1x Excitation Module

  • 1x Objective Aluminum Sleeve

• 1x Set of lenses

  • 1x Electrowetting lens (EWL)

  • 2x Achromatic 3 x 6 mm

  • 1x Achromatic 4 x 10 mm

  • 1x Half-ball 3 mm

• 1x Set of filters

  • 1x Emission (ET525/50m, 4x4x1 mm)

  • 1x Excitation (ET470/40x, 4x4x1 mm)

  • 1x Dichroic (T496lpxr, 4x6x1 mm)

• 10x Thread-Forming Screws

To complete your experimental setup you will need, in addition to this kit:

• 1x Miniscope V4 Base Plate for mounting

• 1x Coaxial cable (assembled or kit)

• 1x Miniscope DAQ or ONIX System

Looking just for a replacement PCB? You can get it here.

Documentation

Visit the Miniscope V4 documentation maintained by Open Ephys for more information. A complete set of assembly instructions for building the Miniscope V4 can be found here.

Support

Please note that Miniscope assembly kits are not covered by our warranty, since the components are manipulated by the user to build the device. Reach out to support@oeps.tech if you have any specific questions about the build. For more personalized instruction we offer training services.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-7412

Replacement PCB for the OEPS-7413 - UCLA Miniscope V4.5. This version 4.5 includes voltage detection circuitry for compatibility with an upcoming revision of the Miniscope DAQ. It is fully compatible with the V4 body.

This PCB has a 470 nm excitation LED. If you need a different excitation LED, please get in touch with us. We can customize this replacement PCB for red-shifted opsins such as mCherry, RCaMP, jRGECO1a, PinkyCaMP, etc.

In case of damage to the Miniscope electronics, users can replace the PCB on an existing Miniscope body by following the steps in our Assembly Guide.

Please note that modifying the Miniscope in any way voids its warranty. Reach out to support@oeps.tech if you need help determining whether or not your Miniscope’s PCB needs a replacement.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-7415

The base plate provides a rigid mount on the animal's skull for the Miniscope to attach to. A set screw holds the Miniscope in place while imaging. Click here for more information.

The Miniscope V4 Base Plate (Variant 2) with cover (Pack of 2) includes:

• 2x Miniscope V4 Base Plate

• 2x Base Plate cover

• 2x Set screw

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-7416

The base plate provides a rigid mount on the animal's skull for the Miniscope to attach to. A set screw holds the Miniscope in place while imaging. Click here for more information.

The Miniscope V4 Base Plate (Variant 2) w/ cover (Pack of 10) includes:

• 10x Miniscope V4 Base Plate

• 10x Base Plate cover

• 10x Set screw

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-7417

Covers for the Miniscope V4 Base Plate (v2) made out of durable Delrin plastic.

The Miniscope V4 Base Plate (v2) Cover (pack of 2) includes:

• 2x Base Plate Cover

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-7424

This stereotax holder allows precise positioning of the baseplate during implantation. The Miniscope is held firmly with two screws and the baseplate is attached to the Miniscope beneath the holder. The Miniscope can then be used during the baseplating surgery to evaluate the field of view and focal plane before cementing the baseplate.

• For UCLA Miniscope v4

• Compatible with most stereotaxic frames. Mounting holes are 16 mm in diameter. Total length 13.2 cm

• Fully articulated. Rotate and angle the Miniscope using the middle ball and socket joint, then lock in place.

• Spare plastic holder piece included in the package.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-7409

The ‘dummy’ scope matches the Miniscope V4 in weight and size. It is designed to habituate animals to carrying the Miniscope V4 during, for instance, behavioural training. These are for use on animals that have been implanted with a Base Plate Variant 2.

• Weight and shape matched to Miniscope V4

• Same Delrin material

• Aluminum sleeve for compatibility with Base Plate Variant 2

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-5300

The Miniscope screwdriver is a Torx T2. It can be used for both Miniscope assembly and securing the Miniscope to the baseplate. The end swivel and handheld size provide a good grip during manipulation.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-5501

A 50Ohm coaxial cable connects the Miniscope V4 and the Miniscope DAQ v3.3 for power, communication, and data. More information here.

Pre-Assembled, ready-to-use

The default length is 1.5 meters. If you are looking for a specific length, please consider the custom length option.

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-5503

A 50Ohm coaxial cable connects the Miniscope V4 and the Miniscope DAQ v3.3 for power, communication, and data. More information here.

Pre-Assembled, ready-to-use

The length can be configured according to your needs. It includes both of the connectors at either end of the tether, as shown in the picture.

The desired length will be requested once you click the ADD TO CART button.

Note: For lengths above 1.5 meters (~5 feet) we recommend using an external power supply for your Miniscope DAQ v3.3.

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-5502

A 50Ohm coaxial cable connects the Miniscope V4 and the Miniscope DAQ v3.3 for power, communication, and data. More information here.

Assembly Kit

• 3 meters (~10 ft) of Cooner Wire CW8251

• 2x Hirose U.FL Connector

• 1x Coax to SMA Connector pre-assembled

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-7407

Discontinued: This product is no longer available for purchase or shipment. The recommended alternative is OEPS-7413.

The open-source Miniscope V4.4 used for 1 photon imaging in freely behaving animals.

This newest version, V4.4, has a more stable motion sensor, needs less epoxy which slightly reduces the overall weight, and has a new regulator for increased image performance.

• > 1mm diameter field of view and ~ 1mm working distance

• +/- 200um electronic focal adjustment

• All achromatic optics

• 2.6 grams and 22 mm tall

• 470 nm excitation LED

• Absolute head orientation sensor

• Requires ~1/5th the excitation power of previous systems

• Uses a single coaxial cable (down to 1.1 mm in diameter) for power, communication, and data

• Works in Bonsai and with the Miniscope DAQ software

Package includes:

• 1x Assembled V4.4 Miniscope

This device requires additional components to operate. Please check the device connectivity list to purchase any cables, tethers and power supplies you might need.

You will also need a Miniscope DAQ or an ONIX System to complete your experimental setup, and baseplates for implantation. You can optionally get a Torque-free Coaxial Commutator (works in Bonsai).

Looking just for a replacement PCB? You can get it here.

The filters used in this scope are:
- ET470/40x excitation filter

- ET525/50m emission filter

- T496lpxr dichroic mirror

If you need a different excitation LED, please get in touch with us.

Documentation

Visit the Miniscope documentation maintained by Open Ephys for more information.

Support

We provide support for the assembled Miniscope V4, to help you troubleshoot and answer your questions, in close collaboration with the UCLA Miniscope team.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-7405

Discontinued: This product is no longer available for purchase or shipment. The recommended alternative is OEPS-7414.

This kit has all you need to assemble a full Miniscope V4.4. The open-source Miniscope V4.4 is a microscope that is mounted directly on the animal and used for 1 photon imaging in freely behaving animals. This newest version, V4.4, has a more stable motion sensor, is faster to assemble, and has a new regulator for increased image performance.

We also offer fully assembled Miniscope V4.

Package includes:

• 1x Assembled rigid-flex PCB V4.4

  • Tested and programmed

  • 470 nm excitation LED. If you need a different excitation LED, please get in touch with us. We can customize this assembly kit for red-shifted opsins such as mCherry, RCaMP, jRGECO1a, PinkyCaMP, etc.

• 1x Set of machined parts

  • 1x Objective Module

  • 1x Emission Module

  • 1x Excitation Module

  • 1x Objective Aluminum Sleeve

• 1x Set of lenses

  • 1x Electrowetting lens (EWL)

  • 2x Achromatic 3 x 6 mm

  • 1x Achromatic 4 x 10 mm

  • 1x Half-ball 3 mm

• 1x Set of filters

  • 1x Emission (ET525/50m, 4x4x1 mm)

  • 1x Excitation (ET470/40x, 4x4x1 mm)

  • 1x Dichroic (T496lpxr, 4x6x1 mm)

• 10x Thread-Forming Screws

To complete your experimental setup you will need, in addition to this kit:

• 1x Miniscope V4 Base Plate for mounting

• 1x Coaxial cable (assembled or kit)

• 1x Miniscope DAQ or ONIX System

Looking just for a replacement PCB? You can get it here.

Documentation

Visit the Miniscope V4 documentation maintained by Open Ephys for more information. A complete set of assembly instructions for building the Miniscope V4.4 can be found here.

Support

Please note that Miniscope assembly kits are not covered by our warranty, since the components are manipulated by the user to build the device. Reach out to support@oeps.tech if you have any specific questions about the build. For more personalized instruction we offer training services.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-7408

Discontinued: This product is no longer available for purchase or shipment. The recommended alternative is OEPS-7012.

Replacement PCB for the OEPS-7407 - UCLA Miniscope V4.4.

In case of damage to the Miniscope electronics, users can replace the PCB on an existing Miniscope body by following the steps in our Assembly Guide.

Please note that modifying the Miniscope in any way voids its warranty. Reach out to support@oeps.tech if you need help determining whether or not your Miniscope’s PCB needs a replacement.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-7431 (DAQ)
SKU: OEPS-9050 (DAQ with accessories)

The Miniscope DAQ connects a Miniscope V4 or V3 to an acquisition computer.

The original UCLA design has been upgraded by Open Ephys. v3.4 features:

• 1x Miniscope input channel, with full bandwidth imaging and IMU (inertial measurement unit) data

• 2x Digital Input channels (5V tolerant) for logging or triggering events

• 1x Sync Output channel for synchronization (revised functionality)

Package includes:

• 1x Miniscope DAQ

• Optional: With or without Miniscope Accessories

This device requires additional components to operate. Please check the device connectivity list to purchase any cables, tethers and power supplies you might need.

Documentation

Visit the Miniscope documentation maintained by Open Ephys for more information.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-7435

An accessory kit that makes it easy to connect the Miniscope DAQ to your favorite devices. This is a collection of commonly-used connectors and adapters.

List of components

• 2x Coaxial Cable BNC Plug to SMA Plug 150 mm (~6 inches)

• 2x Coaxial Cable BNC Plug to SMA Plug 1.2 m (~4 ft)

• 1x Adapter BNC Plug to Terminale Block 2 Way

• 2x Adapter BNC Receptacle to Terminale Block 2 Way

• 2x Adapter BNC Plug to BNC Plug

• 1x Adapter BNC Plug to BNC Plug to BNC Receptacle

• 1x Adapter BNC Plug to BNC Plug to BNC Plug

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-5906

For Miniscope cables above 1.5 meters, it’s recommended to supply the Miniscope DAQ with an external power supply to decrease possible image sensor artifacts.

In order to use the Miniscope DAQ with a power supply, you would need to open the case and change an internal jumper.

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-7450

Discontinued: This product has been discontinued and will remain available for purchase until all remaining stock is sold.

The MiniDAQ is a data acquisition device that plugs straight into a USB port and can both power and acquire data from one Miniscope or MiniCAM through a coaxial cable.

It’s tiny size (15 x 40 mm) and affordable price means that MiniDAQs can be used flexibly in many different types of setup.

If you need to synchronize with external devices, we recommend using the full-size DAQ v.3.3 instead.

Includes

• 1x MiniDAQ

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-7451

Discontinued: This product has been discontinued and will remain available for purchase until all remaining stock is sold.

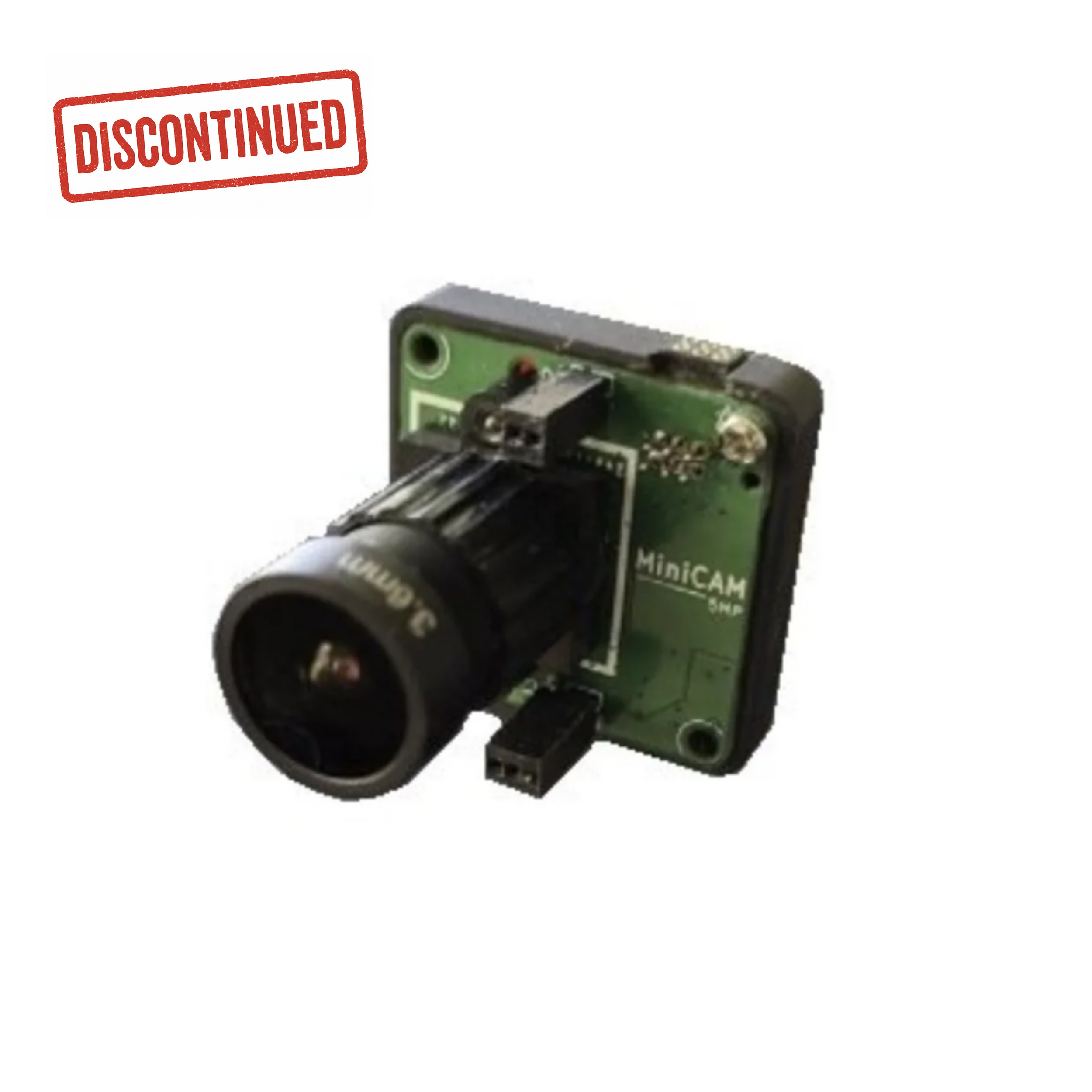

The MiniCAM is an open-source behavioural camera for imaging animal movement and behaviour during experiments.

The MiniCAM is connected to a Miniscope DAQ via a single coaxial cable, which provides both power and data transfer. Please note the Sync Out and Trigger In functionalities of the Miniscope DAQ are only enabled for use in Bonsai, and not in the Miniscope’s own software.

The MiniCAM runs at 50fps with 1024X768 by default in the Miniscope software, this can be adjusted in this software and in Bonsai, and both can be used to acquire from multiple MiniCAMs or Miniscopes.

Packages includes

• 1x MiniCAM

• 1x M12 lens holder

• 1x 3D plastic holder

Note: The lens is not included

This device requires additional components to operate. Please check the device connectivity list to purchase any cables, tethers and power supplies you might need.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-7452

Discontinued: This product has been discontinued and will remain available for purchase until all remaining stock is sold.

The MiniCAM LED ring is an optional addition to the MiniCAM, to provide infrared illumination of the animal and provide clear behavioural image quality without interfering with animal behaviour.

The intensity of the LED ring can be controlled through the Miniscope software.

To use the MiniCAM LED ring, you will need a MiniCAM, a 50Ohm coaxial cable, and a Miniscope DAQ or MiniDAQ.

Includes

• 1x MiniCAM LED Ring

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-7456

Discontinued: This product has been discontinued and will remain available for purchase until all remaining stock is sold.

The MiniCAM can use a variety of lenses.

In order to find the best option for a certain setup, this kit brings you 10x different lenses that fit perfectly into the M12 holder that is present in the MiniCAM.

Once you know the right one, you can use the reference (check last image) to acquire more units, which are available from several distributors.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-7760

The Torque-free Dual Coaxial Commutator enables tangle-free connection between a stationary data acquisition device and two headstages on a freely-moving animal. It is compatible with any two ONIX headstages or Miniscope V4. Torque-free active commutation is driven by interfacing with a variety of head-orientation tracking technologies including:

• Recording devices that contain on-board Inertial Measurement Units (IMUs), such as:

  • UCLA miniscope v4

  • ONIX Headstage Ephys 64ch (including opto and current stimulation)

  • ONIX Headstage Neuropixels 2.0e

• Computer vision:

  • DeepLabCut

  • SLEAP

Works in Bonsai for acquisition with the ONIX Acquisition Sytem and Miniscope DAQ.

The commutator is open source and easy to extend for custom miniscopes, headstages, etc.

Package includes:

• 1x Torque-free Coaxial Commutator

• 1x Commutator Lubricant Tub

This device requires additional components to operate. Please check the device connectivity list to purchase any cables, tethers and power supplies you might need.

Documentation

Visit our Commutators docs for more information.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info[a]oeps.tech.

SKU: OEPS-7511

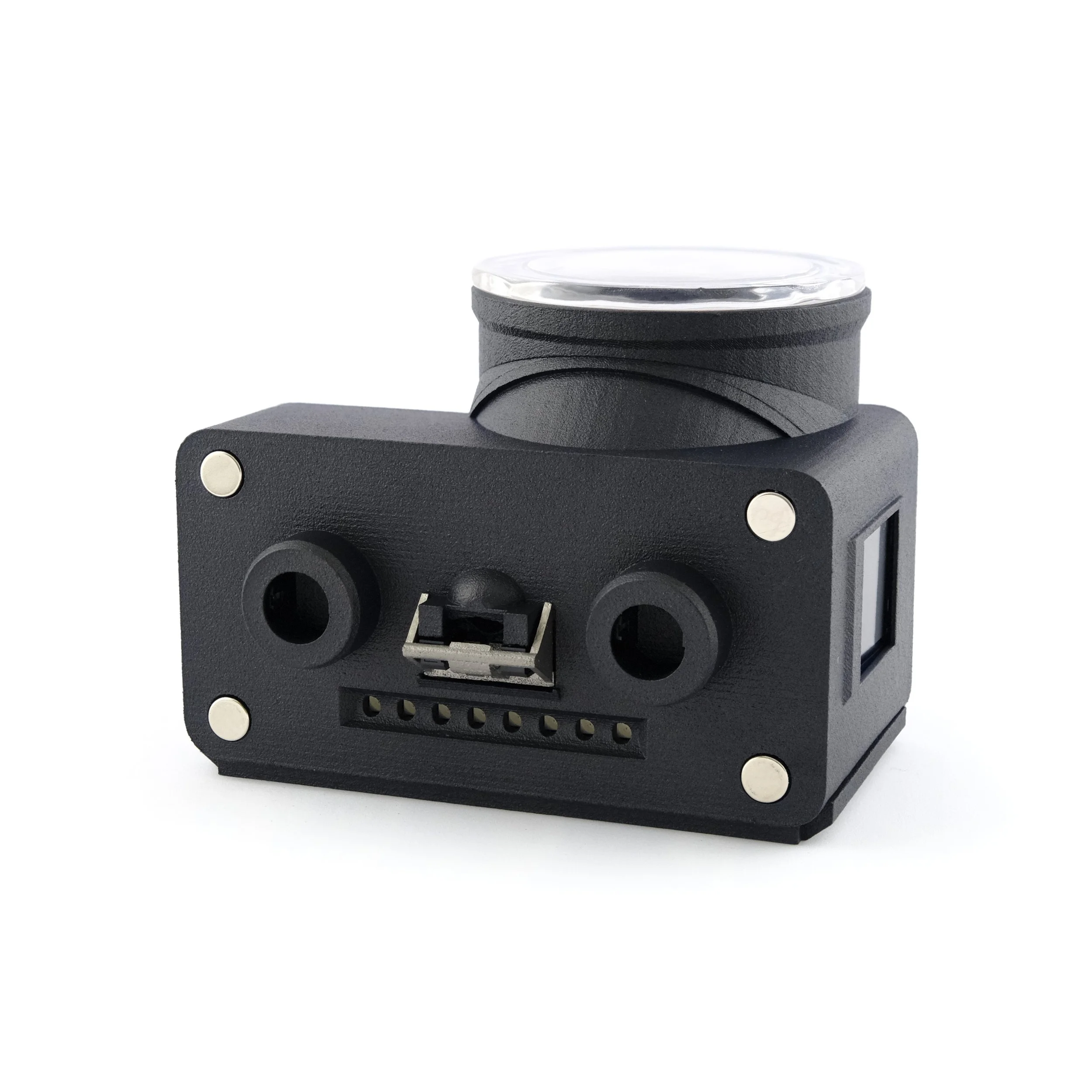

FED3 is a homecage pellet-dispensing device for training mice on operant tasks. Mice interact with FED3 through two nose-pokes and FED3 responds with visual stimuli, auditory stimuli, and by dispensing pellets. All behavioral events are logged to an on-board microSD card. Click on the link to watch an introductory video.

FED3 is compact and wire-free so it can be placed in the homecage or mounted to the side with magnets. Its rechargeable battery lasts about a week between charges. The top lid is transparent to monitor the amount of available pellets. FED3 is open-source and fully programmable with the FED Arduino library which includes more than 10 pre-programmed feeding and stimulation paradigms.

Features:

• Two nose pokes, 8 RGBW LEDs on the front panel, 1 RGBW LED inside each poke, onboard speaker and pellet-retrieval sensor at the well.

• Hopper with capacity for 800 20 mg pellets with single-pellet dispenser and jam-clearance mechanisms.

• Built-in screen used to provide real-time feedback to the experimenter.

• Audio 3.5mm mono jack digital port programmable as input or output (3.3V logic) to synchronize with and control external equipment such as lasers or brain recording systems. You can get an audio-to-BNC adapter in our store.

What’s new in FED3.2:

• USB connector upgraded to the latest USB-C type.

• Single USB port for both charging + programming.

• Standard I2C connector for environment sensors (temperature & humidity). You can get the sensor and the cable for it in our store.

• Improved battery management and 4× faster charging.

View the full version comparison table.

Package includes:

• 1x Assembled FED3.2 programmed to your time-zone. Includes a Micro SD memory card, a coin cell and 3.7V 4400mAh Li-Ion Battery Pack.

This device requires additional components to operate. Please check the device connectivity list to purchase any cables, tethers and power supplies you might need.

Documentation

Visit the FED Wiki and watch the tutorial videos for more information.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-7506

FED3 is a homecage pellet-dispensing device for training mice on operant tasks. Mice interact with FED3 through two nose-pokes and FED3 responds with visual stimuli, auditory stimuli, and by dispensing pellets. All behavioral events are logged to an on-board microSD card. Click here to watch an introductory video.

FED3 is compact and wire-free so it can be placed in the homecage or mounted to the side with magnets. Its rechargeable battery lasts about a week between charges. FED3 is open-source and fully programmable with the FED Arduino library which includes more than 10 pre-programmed feeding and stimulation paradigms.

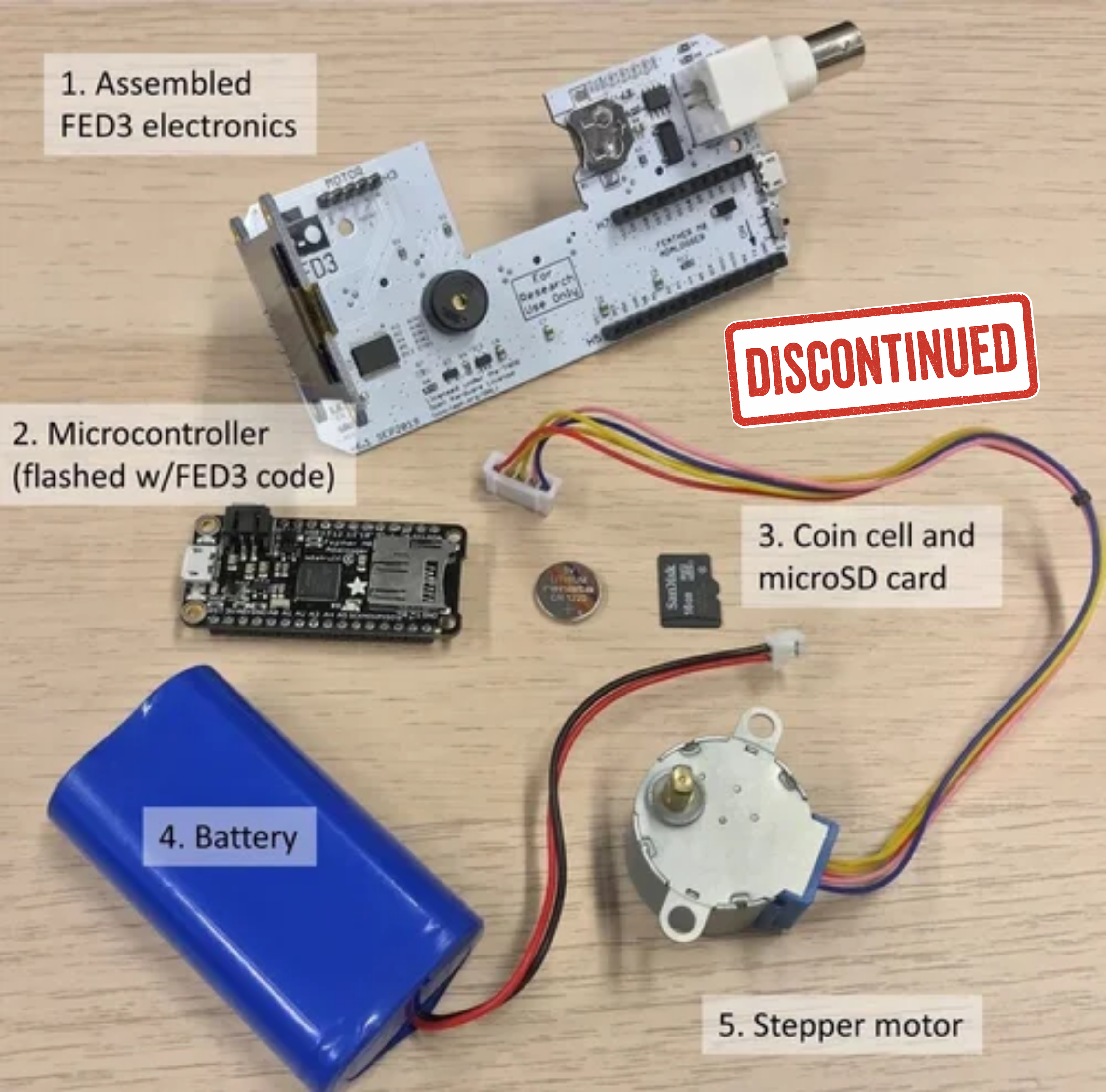

This “print-your-own” Electronics Kit provides experimenters with flexibility to change the FED3 enclosure, while providing you with assembled and quality-tested electronics. You only need to provide the 3D parts, screws, nuts and magnets.

This kit contains:

• 1x Assembled FED3.2 PCB with display which includes the pre-programed microcontroller

• 1x Stepper motor

• 1x 3.7V 4400mAh Li-Ion Battery Pack

• 1x Coin cell battery

• 1× 16GB Micro SD card

This device requires additional components to operate. Please check the device connectivity list to purchase any cables, tethers and power supplies you might need.

Documentation

Visit the FED Wiki and watch the tutorial videos for more information. The assembly guide can be found here. Internal changes to the case require different 3D files than previous versions.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-5122

Converts the audio jack 3.5 mm output available in the FED3.1 to a standard BNC connector.

Includes:

• 1x Audio to BNC adapter

Specifications:

• Nickel plated audio 3.5mm connector with strain relief

• Nickel plated BNC connector

• 4 inches end to end (100mm +- 20mm)

SKU: OEPS-0430

Temperature and humidity sensor for the FED3.2 (*).

When this sensor is connected to a FED3.2 via the STEMMA QT bus, the FED3.2 can log the environment’s temperature and humidity to the SD Card.

Typical accuracy:

• Temperature: +-0.3ºC

• Humidity: +-2%

(*) It can also be used with any Arduino via a standard I2C connection.

Package includes:

• 1x Temperature and Humidity Sensor - AHT20

This peripheral requires additional components to operate. Please check the device connectivity list to purchase any cables, tethers and power supplies you might need.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-5201

The STEMMA QT cable (also compatible with Sparkfun’s Qwiic bus) is used to connect the Temperature and Humidity Sensor - AHT20 to the FED3.2.

Package includes:

• 1x Cable (STEMMA QT / Qwiic) 0.33ft (0.1m)

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-7510

Discontinued: This product is no longer available for purchase or shipment. The recommended alternative is OEPS-7511.

FED3 is a homecage pellet-dispensing device for training mice on operant tasks. Click here to watch an introductory video.

FED3.1 is compact and wireless so it can be placed in the homecage or mounted to the side with magnets. Its rechargeable battery lasts about a week between charges. The top lid is transparent to monitor the amount of available pellets. The FED3.1 includes a built-in screen used to provide real-time feedback to the experimenter. FED3.1 is open-source and fully programmable with the FED Arduino library which includes more than 10 pre-programmed feeding and stimulation paradigms.

New features in FED3.1, our enhanced version of the popular FED3 (yellow arrows in pictures):

• Two extra LEDs (RGBW) inside the pokes, that can be used for animal cues.

• Audio instead of BNC connector. This connector is smaller, and cables are more flexible, reducing the space taken up by the FED. You can get an audio-to-BNC adapter here.

• New, handy location of the battery connector, to make it easier to replace the rechargeable internal battery.

Package contains:

• 1x Assembled FED3.1, quality-tested and programmed to your time-zone.

This device requires additional components to operate. Please check the device connectivity list to purchase any cables, tethers and power supplies you might need.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-7505

Discontinued: This product has been discontinued. The recommended alternative is OEPS-7506.

FED3 is a homecage pellet-dispensing device for training mice on operant tasks. Click here to watch an introductory video.

FED3.1 is compact and wireless so it can be placed in the homecage or mounted to the side with magnets. Its rechargeable battery lasts about a week between charges. The FED3.1 includes a built-in screen used to provide real-time feedback to the experimenter. FED3.1 is open-source and fully programmable with the FED Arduino library which includes more than 10 pre-programmed feeding and stimulation paradigms.

This “print-your-own” Electronics Kit provides experimenters with flexibility to change the FED3.1 enclosure, while providing you with assembled and quality-tested electronis. You only need to provide the 3D parts, screws, nuts and magnets.

This kit contains:

• 1x Assembled PCB with display

• 1x Feather M0 (flashed and with an enhanced customized charger circuit)

• 1x Stepper motor

• 1x 4400 mAh battery

• 1x Coin cell battery

• 1x Micro SD card

This device requires additional components to operate. Please check the device connectivity list to purchase any cables, tethers and power supplies you might need.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-6602

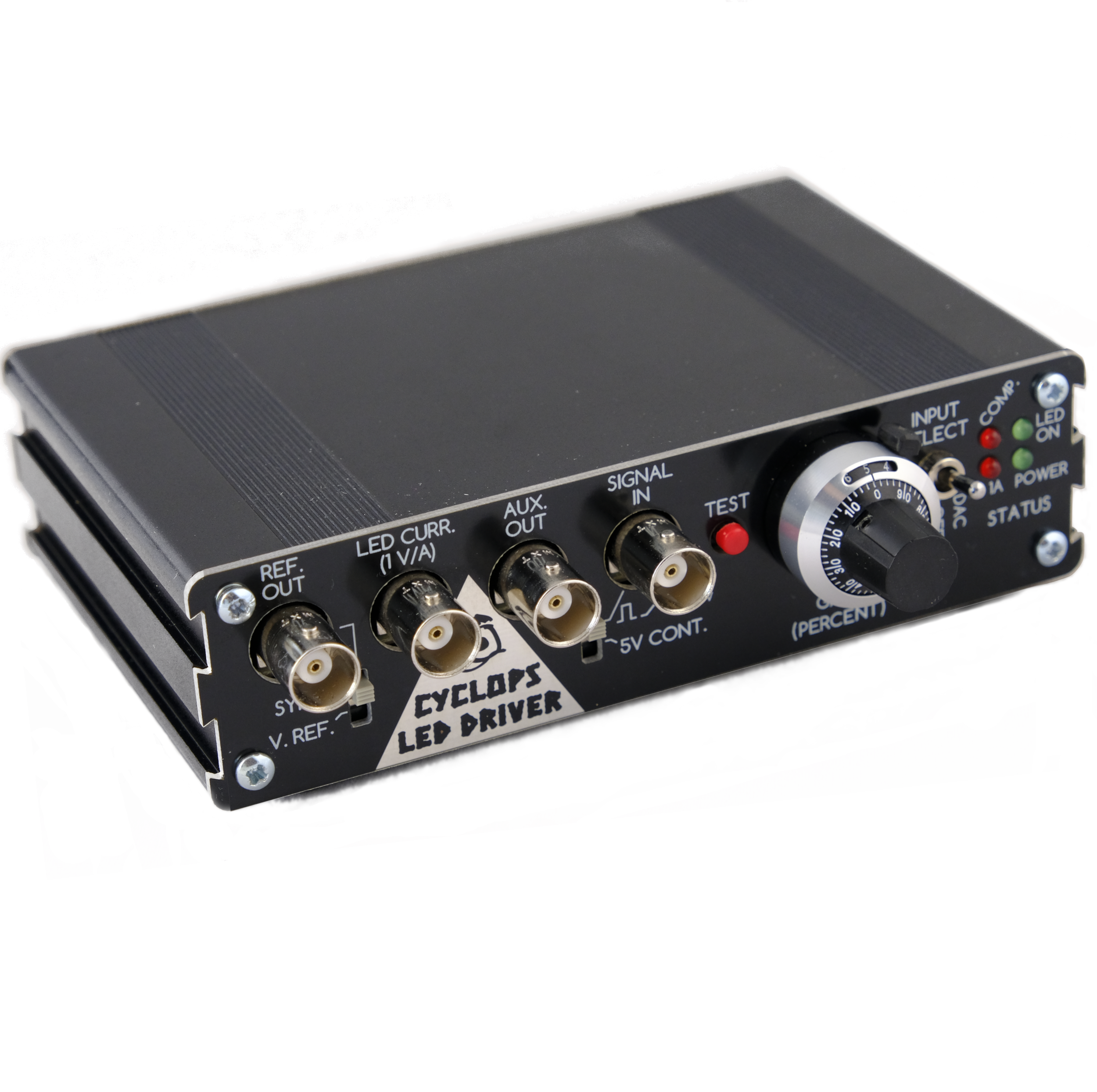

Cyclops is an open-source LED driver that enables extremely precise control of light power for optogenetic stimulation.
This revision offers considerable improvements in terms of speed, precision, programmability, thermal stability, and ease of use.

Its capability of delivering ultra-precise and continuously time-varying light waveforms for optogenetic stimulation is still not possible with commercial hardware for optogenetic stimulation.

Cyclops offers the possibility to directly drive Thorlabs or Doric LED modules using the mounted M8 Connector.

See more details here, or the manual (pdf).

Package includes:

• 1x Cyclops (revision 3.7)

• 1x Teensys 3.2 (embedded on Cyclops)

This device requires additional components to operate. Please check the device connectivity list to purchase any cables, tethers and power supplies you might need.

Under Revision: This device is being upgraded. We are not accepting orders at the moment. The new revision will be released in April 2027.

Features of the new revision:

• Connection via USB-C

• Upgraded the microcontroller to the recent RP2354B

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via e-mail.

SKU: OEPS-7520

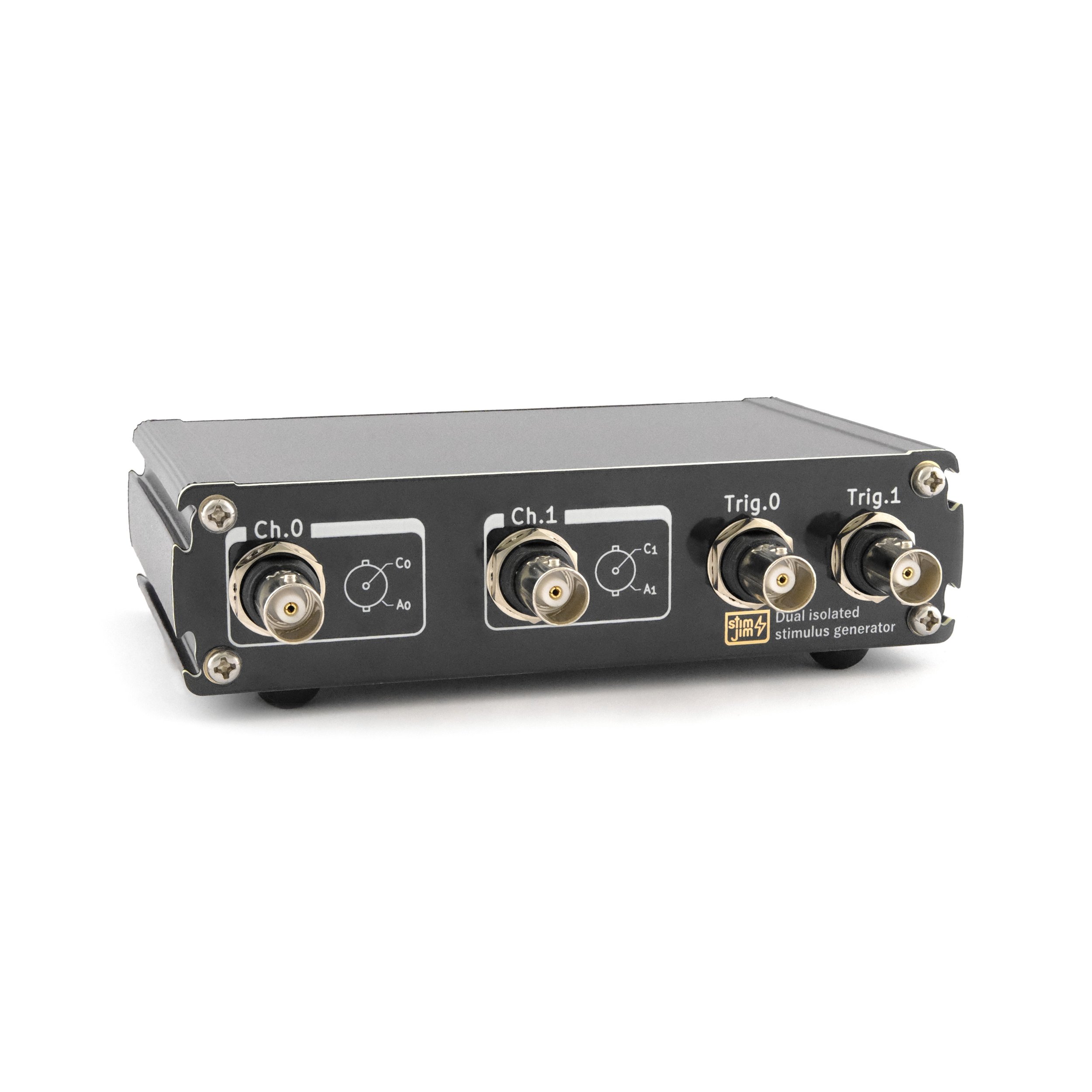

StimJim is a dual-channel electrical stimulator for extracellular stimulation and lesioning.

• Generates arbitrary current or voltage waveforms with microsecond temporal resolution and microampere or millivolt scale precision.

• Both output channels are electrically isolated from earth ground and each other to reduce electrical stimulation artifacts during concurrent electrophysiological recordings.

• Includes automatic charge-balancing circuitry to prevent tissue damage due to charge imbalances.

• Stimulus current and voltage are measured on each channel and reported to ensure correct stimulus delivery and calculate in-situ electrode resistance.,

• Two triggerable channels for integration with external devices. .

• Switch between selection of voltage or current stimulation on-the-fly.

• The pre-programmed  StimJim Pulser Arduino sketch allows  up to 100 user configurable pulse train waveforms that can be configured with a simple set of serial commands. Alternatively,  you can program your own controller using the Arudino library for low-level control over all circuit functionality.

• Community software resources are available, such as the StimJim Isolator and StimJim GUI.

For more detailed information, check this page.

Package includes:

• 1x StimJim

This device requires additional components to operate. Please check the device connectivity list to purchase the cables you might need.

Under Revision: We are finalizing an upgraded version of this device. All orders placed now will receive the new version, with expected shipment in September.

Features of the new revision:

• Connection via USB-C

• Upgraded the microcontroller to the recent RP2354B

• Increased stimulation precision

• Faster stimulation edges

• Improved readback of the real stimulation

• Increased voltage range

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via e-mail.

SKU: OEPS-9200

A sampling set that includes the three models of the R2 System: the R2drive S for smaller silicon probes, the R2drive L for large silicon probes such as Neuropixels 1.0 and the R2rail for Neuropixels 2.0 with a metal cap dovetail.

All three drives/implants are compatible with the R2 System dettachable metal bases, implant holders and headcaps.

Implants must be sealed before use. Follow implant protocol directions in the documentation.

Package includes:

• 1x R2drive S

• 1x R2drive L

• 1x R2rail

• 3x 19mm dowel pins

Documentation

Visit the R2 System docs for more information.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-9201

A compact, lightweight, metal microdrive for silicon probes that enables recovery and reuse.

It is compatible with the R2 System dettachable metal bases, implant holders and headcaps.

This R2drive S version is suitable for smaller silicon probes with a ribbon cable.

Looking for a version for larger silicon probes such as Neuropixels 1.0? Click here.

Drive must be sealed before use. Follow implant protocol directions in the documentation.

Package includes:

• 3x R2drive S

• 3x 19mm dowel pins

Documentation

Visit the R2 System docs for more information.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-9202

A compact, lightweight, metal microdrive for silicon probes that enables recovery and reuse.

It is compatible with the R2 System dettachable metal bases, implant holders and headcaps.

This R2drive L version is suitable for larger silicon probes with a ribbon cable such as Neuropixels 1.0.

Looking for a version for smaller silicon probes? Click here.

Drive must be sealed before use. Follow implant protocol directions in the documentation.

Package includes:

• 3x R2drive L

• 3x 19mm dowel pins

Documentation

Visit the R2 System docs for more information.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-9203

A compact, lightweight, metal implant for silicon probes that enables recovery and reuse.

It is compatible with the R2 System dettachable metal bases, implant holders and headcaps.

This R2rail version is suitable for Neuropixels 2.0 that have a metal cap dovetail (IMEC product number HOLDER_2000_C). The implant is not drivable.

Looking for drivable versions? Choose between R2drive S and R2drive L.

Implant must be sealed before use. Follow implant protocol directions in the documentation.

Package includes:

• 3x R2rail

• 3x 19mm dowel pins

Documentation

Visit the R2 System docs for more information.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-0410

A pack of three reusable metal bases for the R2 System implants, to enable re-use of silicon probes the moment they are explanted. These fit any of the models: the R2drive S for smaller silicon probes, the R2drive L for large silicon probes such as Neuropixels 1.0 and the R2rail for Neuropixels 2.0 with a metal cap dovetail.

Bases come pre-tapped, but must be sealed before use. Follow implant protocol directions in the documentation.

Package includes:

• 3x bases for R2 System drive/rails

Documentation

Visit the R2 System docs for more information.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-0405

This plastic stereotax attachment can be clamped to the rod of common probe holders to allows precise positioning of the drive/rail during implantation. The plastic holder secures to the stereotax attachment to hold an R2 drive/rail firmly with a screw. The screw can easily be removed to retreat the holder once the device is implanted.

• For any R2 System drive/rail.

• Compatible with most stereotaxic frames. Mounting hole is 8 mm in diameter. The metal rod is not included.

• Includes a mirrored version of the plastic holder to use the stereotax attachment on either the left or right side of the stereotax.

Package includes:

• 1x plastic stereotax attachment

• 1x regular plastic R2 holder

• 1x mirrored plastic R2 holder

• 4x 25 mm header pins

Documentation

Visit the R2 System docs for more information.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-0406

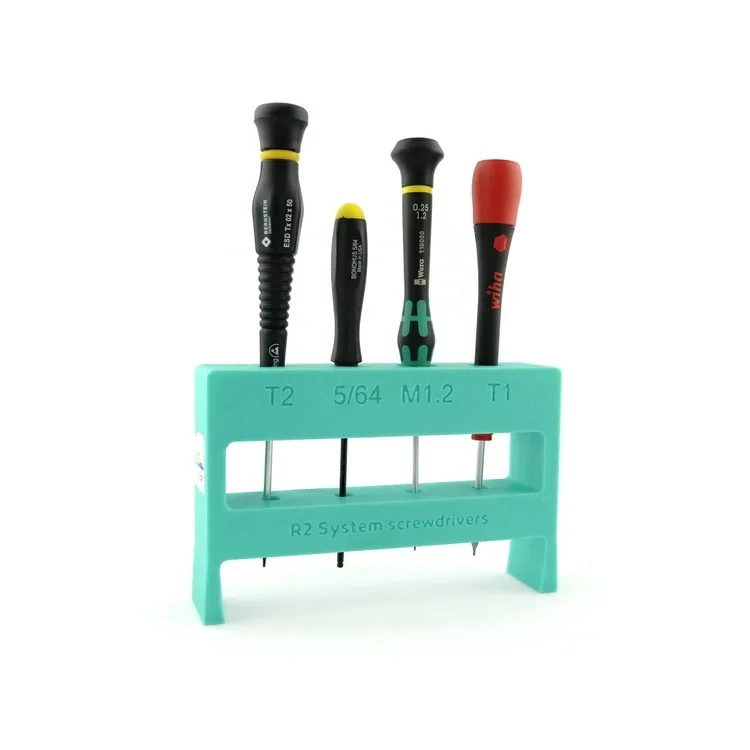

A set of four screwdrivers for operating the R2 System, in a custom base.

Package includes:

• 1x Torx T1 head screwdriver to connect drive/rail body to the base and close the headcap

• 1x Torx T2 head screwdriver to connect the drive holder to the stereotax attachment

• 1x Hex 5/64 ball-end head screwdriver to secure R2 drives/rails in the implant holder

• 1x Flat head M1.2 screwdriver to operate the R2 drives

Documentation

Visit the R2 System docs for more information.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-0407

The R2 Rat Cap is a fast and flexible solution for protecting silicon probe implants on rats.

It consists of a plastic headplate that is cemented to the skull, leaving the entire top exposed to place one or multiple implants. Two side walls hinge to close around the implant after probe insertion, and an optional lid that can be used to close it off. The inside of the cap can be lined with the included conductive tape for electrical isolation. Header pins are included to flexibly position probe connectors inside the cap.

The cap is assembled by the user in advance to cut down on surgery time. Follow implant protocol directions in the documentation.

Package includes:

• 1x plastic headplate, side walls, and lid, tapped and with screws

• 2x 30 mm header pins

• 8x 12mm header pins

• 1x strip of conductive copper tape

• 1x 0.05 in Hex key for the cap screws

Documentation

Visit the R2 System docs for more information.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-0408

The R2 Mouse Cap is a fast and flexible solution for protecting silicon probe implants on mice. It consists of a plastic headplate that is cemented to the skull, leaving the entire top exposed to place one or multiple implants. Two side walls hinge to close around the implants after probe insertion. The inside of the cap can be lined with the included conductive mesh for electrical isolation. Header pins are included to flexibly position probe connectors inside the cap.

The cap is assembled by the user in advance to cut down on surgery time. You can get an R2 Mouse Cap Stencil to easily cut the copper mesh to size, or print your own. Follow implant protocol directions in the documentation.

Package includes:

• 1x plastic headplate and 2x side walls, tapped and with screws

• 2x 30 mm header pins

• 4x 12 mm header pins

• 4x 20 mm header pins (extra)

• 1x strip of copper mesh

Documentation

Visit the R2 System docs for more information.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-0409

The R2 Mouse Cap Stencil provides a quick way to measure out the pieces of copper mesh required to build the R2 Mouse Cap.

Follow implant protocol directions in the documentation.

Package includes:

• 1x plastic stencil for copper mesh

Documentation

Visit the R2 System docs for more information.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.

SKU: OEPS-8010

pyPhotometry is an open source system for fiber photometry data acquisition.

This first version includes:

• 2x Analog inputs for photometry signals. The system supports time-division multiplexed illumination which allows fluorescence evoked by different excitation wavelengths to be independently read out from a single photoreceiver signal.

• 2x Digital inputs for registering behavioral events or sync pulses

• 2x LED driver outputs, each with a 1-100mA adjustable output current. The LED driver outputs are M8 connectors compatible with Doric and Thorlabs LEDs.

For more information, see the documentation at https://pyphotometry.readthedocs.io/

Package includes:

• 1x pyPhotometry

This device requires additional components to operate. Please check the device connectivity list to purchase any cables, tethers and power supplies you might need. Please follow the documentation to pair the acquisition board with LEDs, photoreceivers, and optical components.

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info[a]oeps.tech.

SKU: OEPS-8011

pyPhotometry is an open source system for fiber photometry data acquisition.

Version 2 includes:

• 2x Analog inputs for photometry signals. The system supports time-division multiplexed illumination, which allows fluorescence evoked by different excitation wavelengths to be independently read out from a single photoreceiver signal.

• 2x Digital inputs for registering behavioral events or sync pulses

• 2x LED driver outputs, with adjustable output current up to 300mA. The LED driver outputs are M8 connectors compatible with Doric and Thorlabs LEDs.

Additional improvements from first version:

• 2x LED control digital output channels for triggering external optical hardware such as the Doric Gen3 minicubes, which have integrated LED drivers.

Note the signals output on the two LED control outputs are the same signals used to control the on-board LED drivers, so it is not possible to independently use the LED control outputs and the LED driver outputs at the same time.

• Updated LED driver’s maximum output current from 100 mA to 300 mA.

• Reduced artifacts on analog input signals caused by saturation (i.e., voltage exceeding 3.3V) on the other analog input.

• Additional Picoblade connector providing access to 3x pyBoard pins, including I2C serial communication for further expansion.

For more information see the documentation at https://pyphotometry.readthedocs.io/

Package includes:

• 1x pyPhotometry V2

This device requires additional components to operate. Please check the device connectivity list to purchase any cables, tethers and power supplies you might need.  Please follow the documentation to pair the acquisition board with LEDs, photoreceivers, and optical components.

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info[a]oeps.tech.

SKU: OEPS-8001 (Breakout Board)

Central device of the pyControl system for controlling behavioral experiments with devices such as nosepokes, audio boards, LED drivers, rotary encoders and more. It is easy to program in Python for the onboard pyboard microcontroller. The system includes a GUI for task control and real-time monitoring.

Main features:

• 6x Ports for pyControl peripherals [RJ45]

• 4x BNC connectors for digital and analog input/output as follows:

  • Any of the four BNCs can be configured as a digital input, digital output, or analog input.

  • DAC-1 and DAC-2 can also be configured for analog output.

• Programmable indicator LEDs and a user input button

Note that pyControl operates at 0-3.3V. Nevertheless, BNC-1 and BNC-2 are 5V tolerant when configured as digital inputs.

More information about how to synchronize pyControl with external devices can be found here.

Package contains:

• 1x pyControl Breakout Board.

Note:

This pyControl device may need pyControl peripherals or pyControl accessories to achieve its intended function.

This device requires additional components to operate. Please check the device connectivity list to purchase any cables, tethers and power supplies you might need.

You can also get our pyControl Starter Kit with everything included.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info[a]oeps.tech.

SKU: OEPS-9090

A set of pyControl products to start working with the pyControl system immediately. Includes a selection of pyControl peripherals and pyControl accessories with all components required for their operation.

Package contains:

• 1x Breakout Board

• 1x Audio Board

• 1x Speaker with 30 cm cable

• 3x Pokes with acrlylics for easy mount

• 1x 12V Wall Adapter

• 1x Micro USB cable (1 meter)

• 4x Ethernet cables (4 meters)

• 4x Ethernet cables (0.5 meters)

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info[a]oeps.tech.

It includes one unit of the selected pyControl Peripheral.

User must provide Ethernet cables to connect the pyControl Peripherals to the pyControl Breakout Board.

For the Stepper Driver and the Port Expander user must also provide an extra 12V Wall Adapter.

Please check the device connectivity list to purchase any cables, tethers and power supplies you might need.

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info[a]oeps.tech.

Note: When you add a pyControl Accessory to the card, a pop up will ask the custom cable length.

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info[a]oeps.tech.
