SKU: OEPS-7418

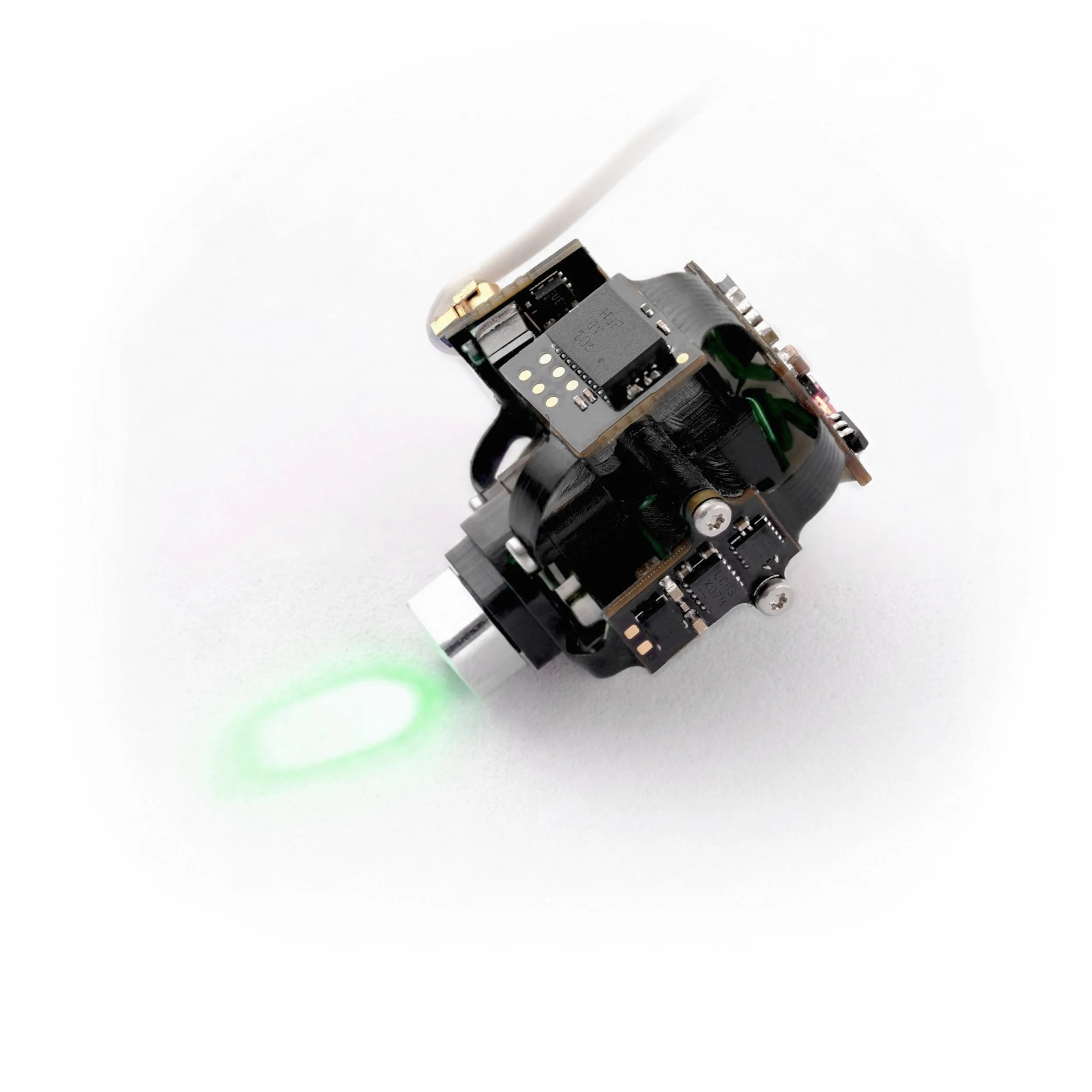

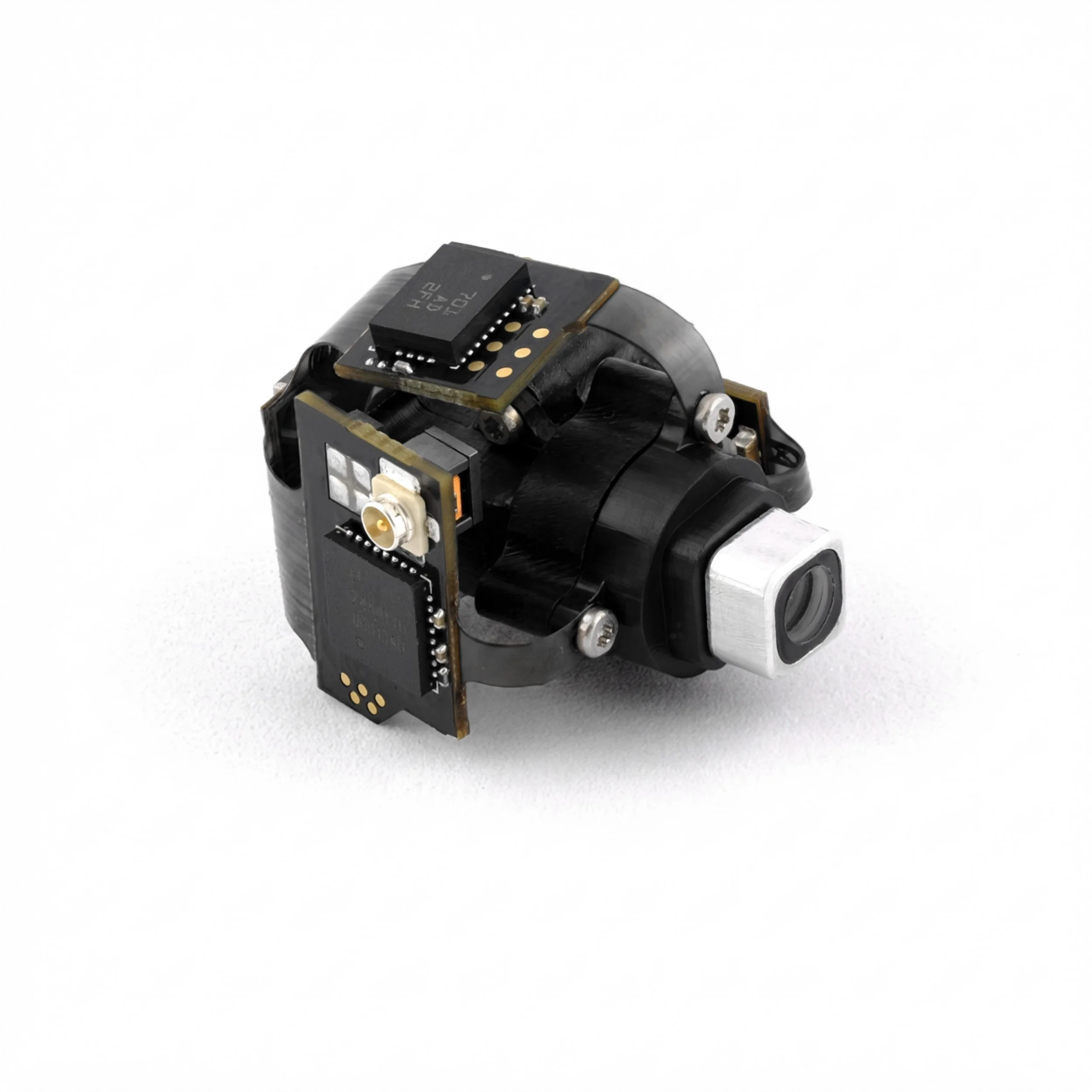

The open-source Miniscope V4.5 (Lime LED) used for 1 photon imaging in freely behaving animals. This version 4.5 adds voltage detection circuitry to monitor the voltage reaching the miniscope in future acquisition hardware revisions. It is interchangeable with previous 4.x Miniscope versions.

• > 1mm diameter field of view and ~ 1mm working distance

• +/- 200um electronic focal adjustment

• All achromatic optics

• 2.6 grams and 22 mm tall

• 560 nm excitation LED

• Absolute head orientation sensor

• Requires ~1/5th the excitation power of previous systems

• Uses a single coaxial cable (down to 1.1 mm in diameter) for power, communication, and data

• Works in Bonsai and with the Miniscope DAQ software

This Miniscope with 560 nm excitation LED and filter combination is ideal for red-shifted opsins such as mCherry, RCaMP, jRGECO1a, PinkyCaMP, etc.

Package includes:

• 1x Assembled V4.5 Miniscope (Lime LED)

This device requires additional components to operate. Please check the device connectivity list to purchase any cables, tethers and power supplies you might need.

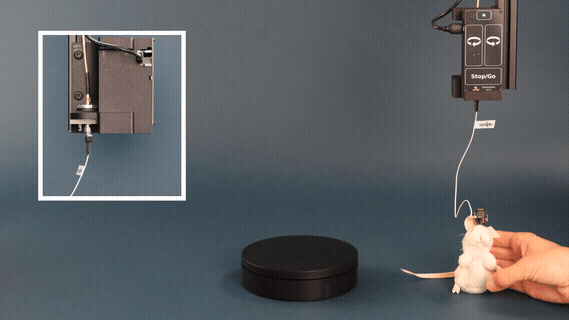

You will also need a Miniscope DAQ or an ONIX System to complete your experimental setup, and baseplates for implantation. You can optionally get a Torque-free Coaxial Commutator.

Looking just for a replacement PCB? You can get it here.

The filters used in this scope are:
- ET560/40x excitation filter

- ET630/75m emission filter

- T585lpxr dichroic mirror

If you need a different excitation LED, please get in touch with us.

Documentation

Visit the Miniscope documentation maintained by Open Ephys for more information.

Support

We provide support for the assembled Miniscope V4, to help you troubleshoot and answer your questions, in close collaboration with the UCLA Miniscope team.

Ordering

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info@oeps.tech.
