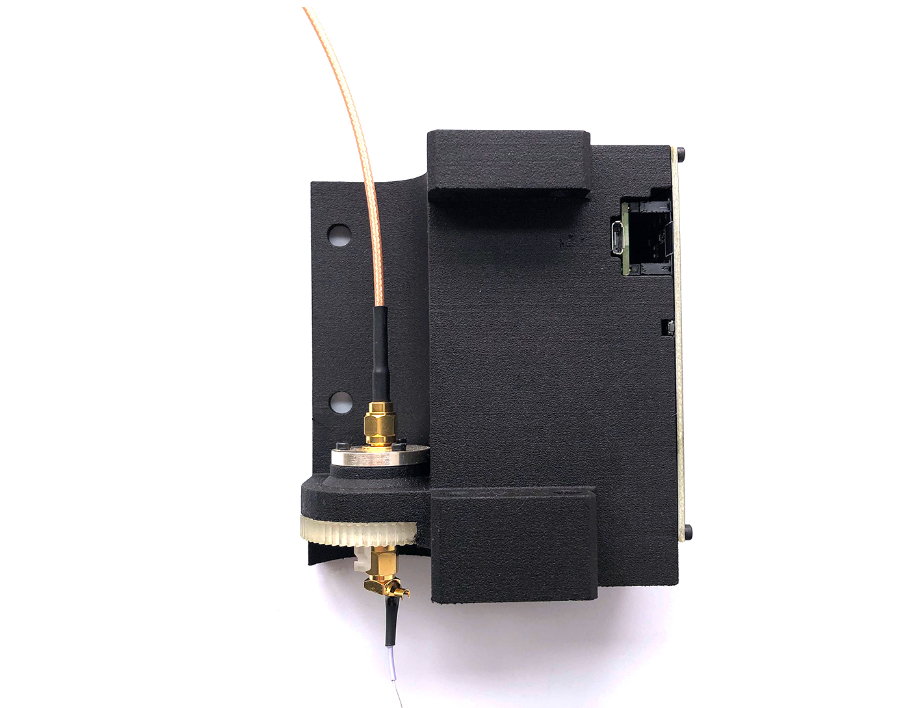

Torque-free Commutator - Coaxial


Torque-free Commutator - Coaxial

€2,250.00

SKU: OEPS-7759

The Torque-free Coaxial Commutator enables tangle-free connection between a stationary data acquisition device and the headstage of a freely-moving animal. It is compatible with any ONIX headstage and Miniscope V4. Torque-free active commutation is driven by interfacing with a variety of head-orientation tracking technologies including:

Works in Bonsai for acquisition with the ONIX Acquisition Sytem and Miniscope DAQ. Integration with the Miniscope DAQ’s own software is coming soon.

The commutator is open source and easy to extend for custom miniscopes, headstages, etc.

Package includes:

  • 1 Torque-free Coaxial Commutator

This device requires additional components to operate. Please check the device connectivity list to purchase any cables, tethers and power supplies you might need.

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info[a]oeps.tech.

Quantity:
Add To Cart

The purpose of Open Ephys Commutators is to promote natural animal behavior by nearly eliminating mechanical stress during neurophysiology experiments. This is achieved by minimizing torque exerted on the animal during optical or electrophysiological recordings by rotating the tether in lock step with the animal’s real-time orientation. Below, Ophelia the mouse shows off the commutator:

Commutator Demonstration at SfN

Features include:

  • Automatic control using head-mounted IMU sensors or computer vision

  • Direct user control via open-source software as well as manual control buttons

  • Silent operation and precise motion (256 uSteps) thanks to Trinamic stepper driver

  • Mountable to standard optical tables and 80/20 rails

  • Single USB connection for power and control

  • Toggleable LED feedback

For more information, please explore the Coaxial Commutation documentation. If you have additional questions, please contact us via support[a]oeps.tech.
