ONIX Headstage Ephys 64ch (including opto and current stimulation)

€3,895.00

SKU: OEPS-7741

64-channel headstage for the ONIX acquisition system.

Can be used to record with most passive probes (e.g. tetrodes, silicon probe arrays, tungsten microwires, steel EEG wires, etc) using a mating connector or adapter. For tetrode recordings, we recommend the ShuttleDrive and ShuttleDrive 64-ch Hirose EIB.

The low profile greatly reduces torque, minimizing the impact of the headstage on animals and promoting naturalistic behavior.

Key aspects:

  • 1.5 g and flat, round, low-torque design

  • Fully compatible with ONIX

  • 64 analog ephys channels and 3 auxiliary channels sampled at 30 kHz per channel

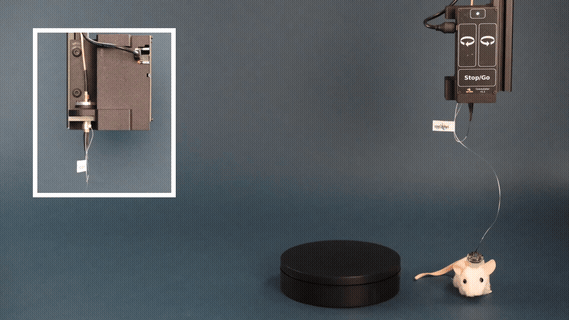

  • BNO055 9-axis IMU for real-time, 3D orientation tracking for torque-free commutation

  • Four TS4231 light to digital converters for real-time, 3D positional tracking using 3D tracking lighthouses

  • An electrical stimulator (current controlled, +/-15V compliance, automatic electrode discharge)

  • Two optical stimulators (800 mA per channel)

Package includes:

  • 1 Low-Profile ONIX Headstage 64ch

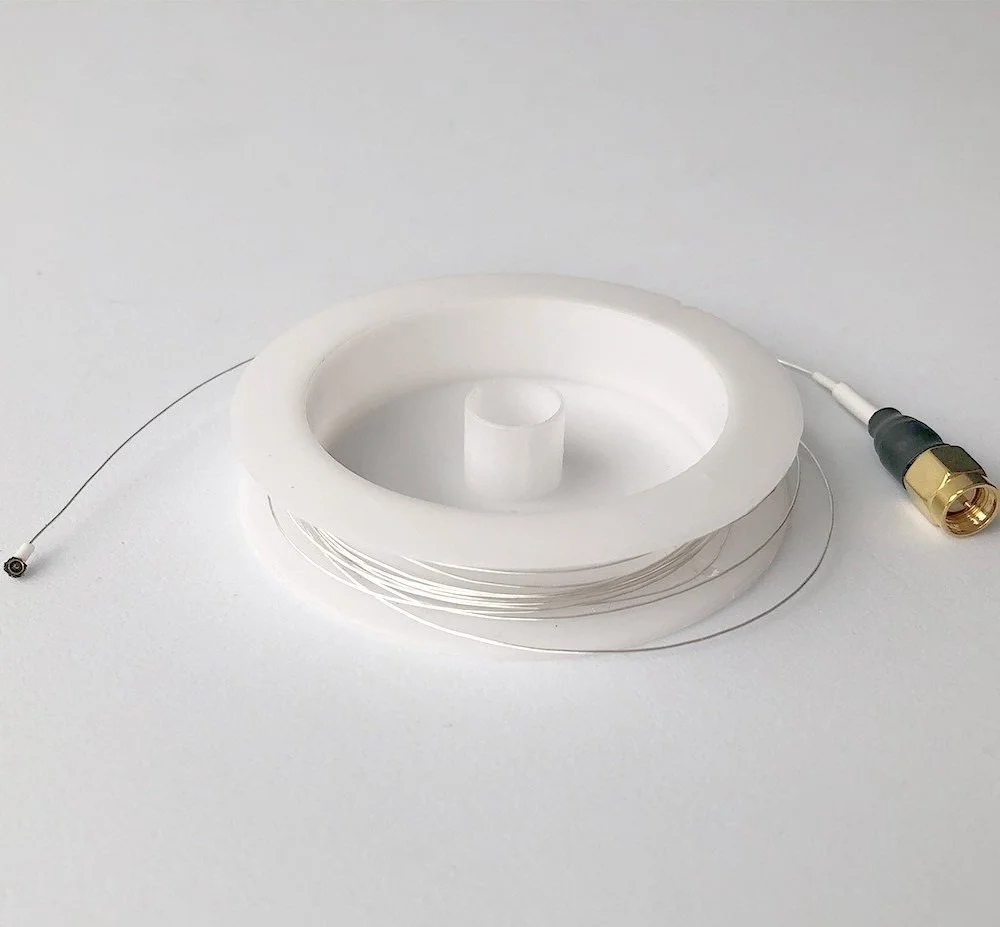

  • 1 micro-coax tether (X.FL to SMA) 8.2 ft (2.5 m)

Note: The ground and reference connections are tied together

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info[a]oeps.tech.

You can also request the Adapter 64ch Hirose to Omnetics.
