Adapter Hirose to Omnetics 64ch

€1,175.00

SKU: OEPS-7200

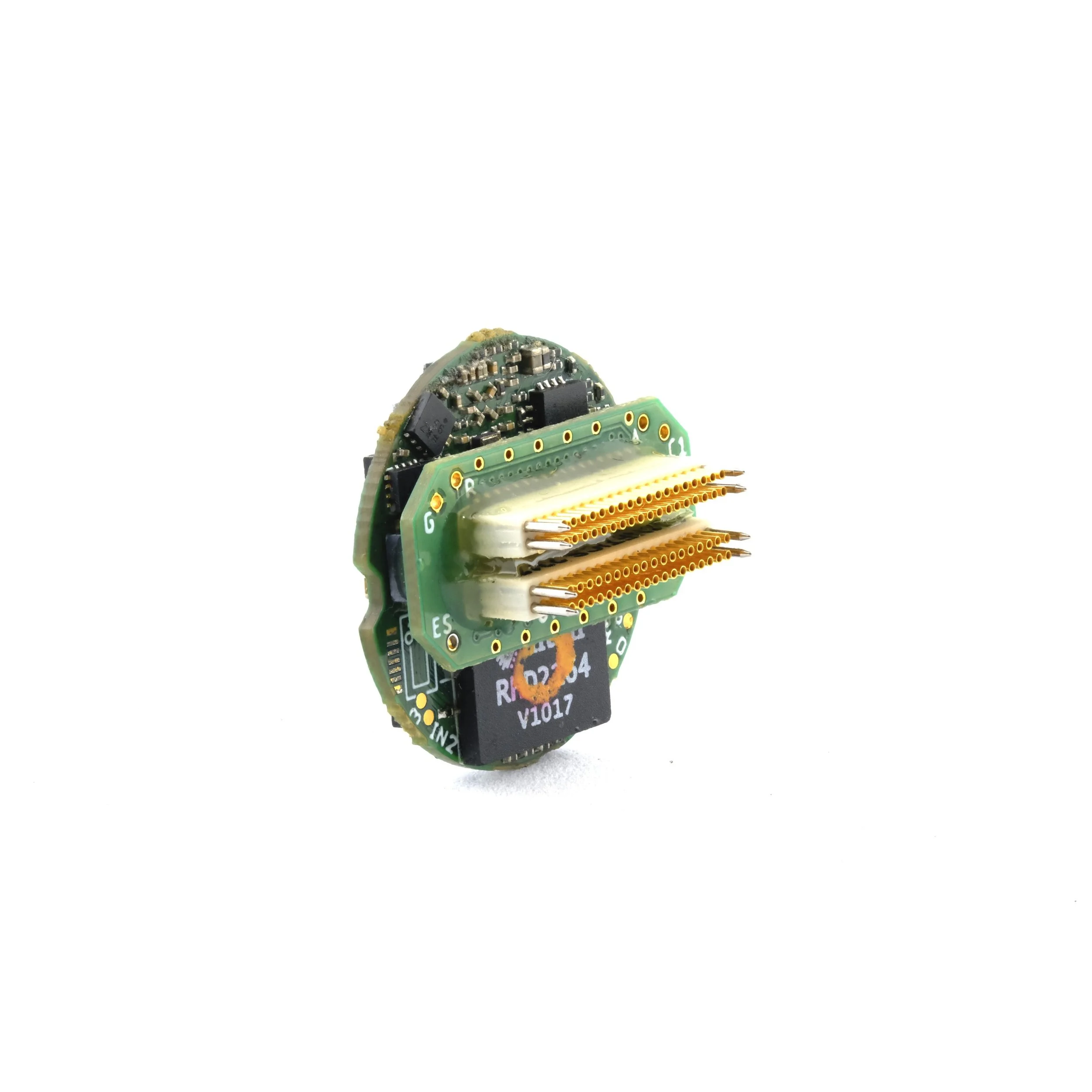

Adapter to interface OEPS-7741 - ONIX Headstage Ephys 64ch with 64ch Omnetics-based silicon probes.

  • Features two Omnetics A79025 connectors (36 pins, 4 guide posts) which mate with two 32-channel (36-pin, 4 guide holes) Omnetics connectors (NPD-36-XX-GS such as A79026) placed at the standard distance for most 64ch silicon probes (0.076in).

  • Has additional vias to expose the A, C0, C1 and ES channels on the OEPS-7741 - ONIX Headstage Ephys 64ch, as well as a R and a G via for flexibility.

  • Weighs 1.03 g

Information on channel mapping can be consulted here.
