Torque-free Commutator - SPI
Torque-free Commutator - SPI
SKU: OEPS-7761
The Torque-free SPI Commutator enables tangle-free connection between a stationary data acquisition device and the headstage of a freely-moving animal. It is compatible with any 3D-capable SPI headstage for the Acquisition Board (3rd Generation). Torque-free active commutation is driven by interfacing with a variety of head-orientation tracking technologies including:
Recording devices that contain on-board Inertial Measurement Units (IMUs):
OR Computer vision:
Works in the Open Ephys GUI (v1.0 and above) for acquisition with the Acquisition Board (3rd Generation).
Package includes:

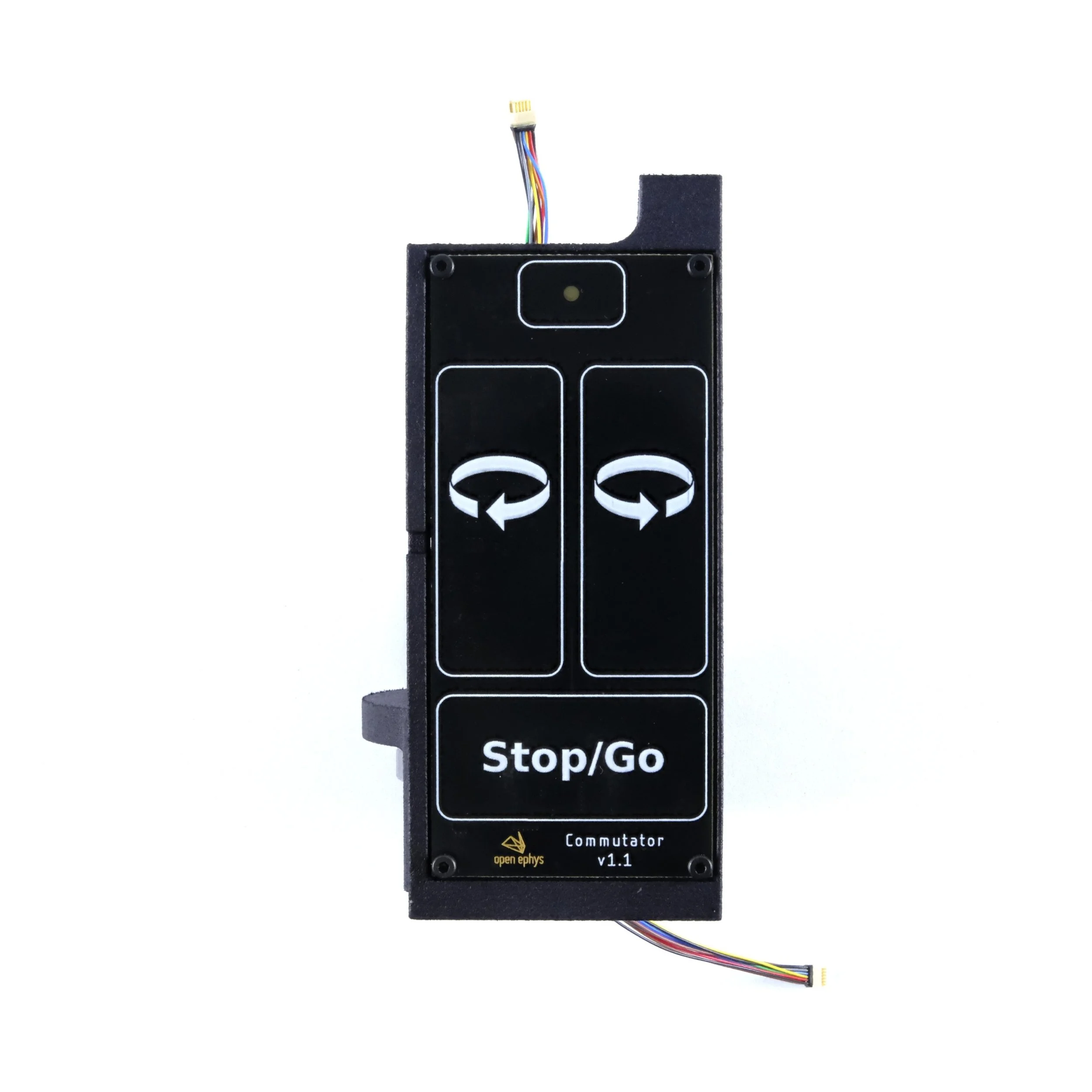

1 Torque-free SPI Commutator
This device requires additional components to operate. Please check the device connectivity list to purchase any cables, tethers and power supplies you might need.
If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via info[a]oeps.tech.

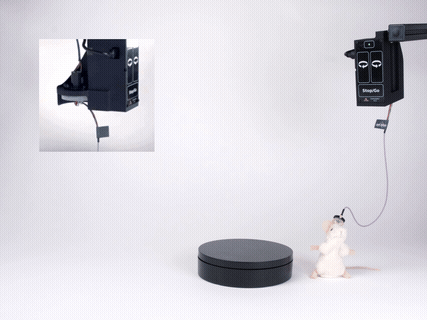

The purpose of Open Ephys Commutators is to promote natural animal behavior by nearly eliminating mechanical stress during neurophysiology experiments. This is achieved by minimizing torque exerted on the animal during optical or electrophysiological recordings by rotating the tether in lock step with the animal’s real-time orientation. Below, Ophelia the mouse shows off the commutator:
Commutator Demonstration at SfN
Features include:
Automatic control using head-mounted IMU sensors or computer vision
Direct user control via open-source software as well as manual control buttons
Silent operation and precise motion (256 uSteps) thanks to Trinamic stepper driver
Mountable to standard optical tables and 80/20 rails
Single USB connection for power and control
Toggleable LED feedback
For more information, please explore the Coaxial Commutation documentation. If you have additional questions, please contact us via support[a]oeps.tech.
