Open Ephys Starter Bundles 3D
Open Ephys Starter Bundles 3D
SKU: OEPS-9114-9116 and SKU: OEPS-9155-9157
Our Starter Bundles 3D include all of the items required to immediately start working with the Open Ephys Acquisition Board (3rd Generation) and our torque-free commutator for freely-behaving recordings. Click here to learn more about the features of the system, and scroll down the page to read more about each option and what is included in each bundle.
Use the selection menus below to adapt your Starter Bundle to:
Suit the electrode array you will be using by choosing between the three headstage options in our range.
Include Training by members of our team.
Looking for our classic bundles? Our acute Starter Bundles are more suitable for short recordings.
Documentation
Visit the Acquisition Board docs for more information.
Ordering
If you need a formal quote and/or prefer bank transfer as the payment method, please contact info@oeps.tech.
Differences Between Headstages
Unipolar headstages are typically used with small geometry electrodes with a global reference for isolating single-units. We carry two unipolar headstages with different profile and probe connectors:
the low-profile SPI Headstage 64ch which features a Hirose connector compatible with our ShuttleDrive tetrode implant
the SPI headstage 32 ch for Omnetics-based silicon probes
Bipolar headstages are optimal for recordings with electrodes of similar impedance and allow analog reference patterns. We carry one bipolar headstage:
- the SPI headstage 16 ch bipolar optimal for recordings with electrodes of similar impedance, such as EMG arrays

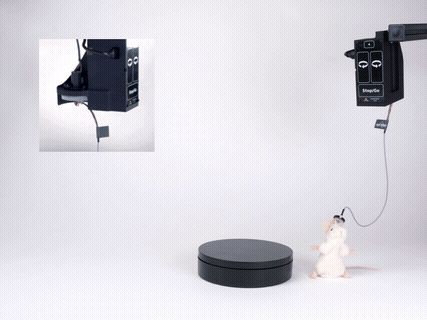

The headstages included in the Starter Bundle 3D are 3D capable. They have an on-board 9-axis inertial measurement unit (IMU) which senses rotational movements (pitch, yaw, and roll). This information can be used to correlate neural activity with behavioral states and to drive our Torque-free SPI Commutator.

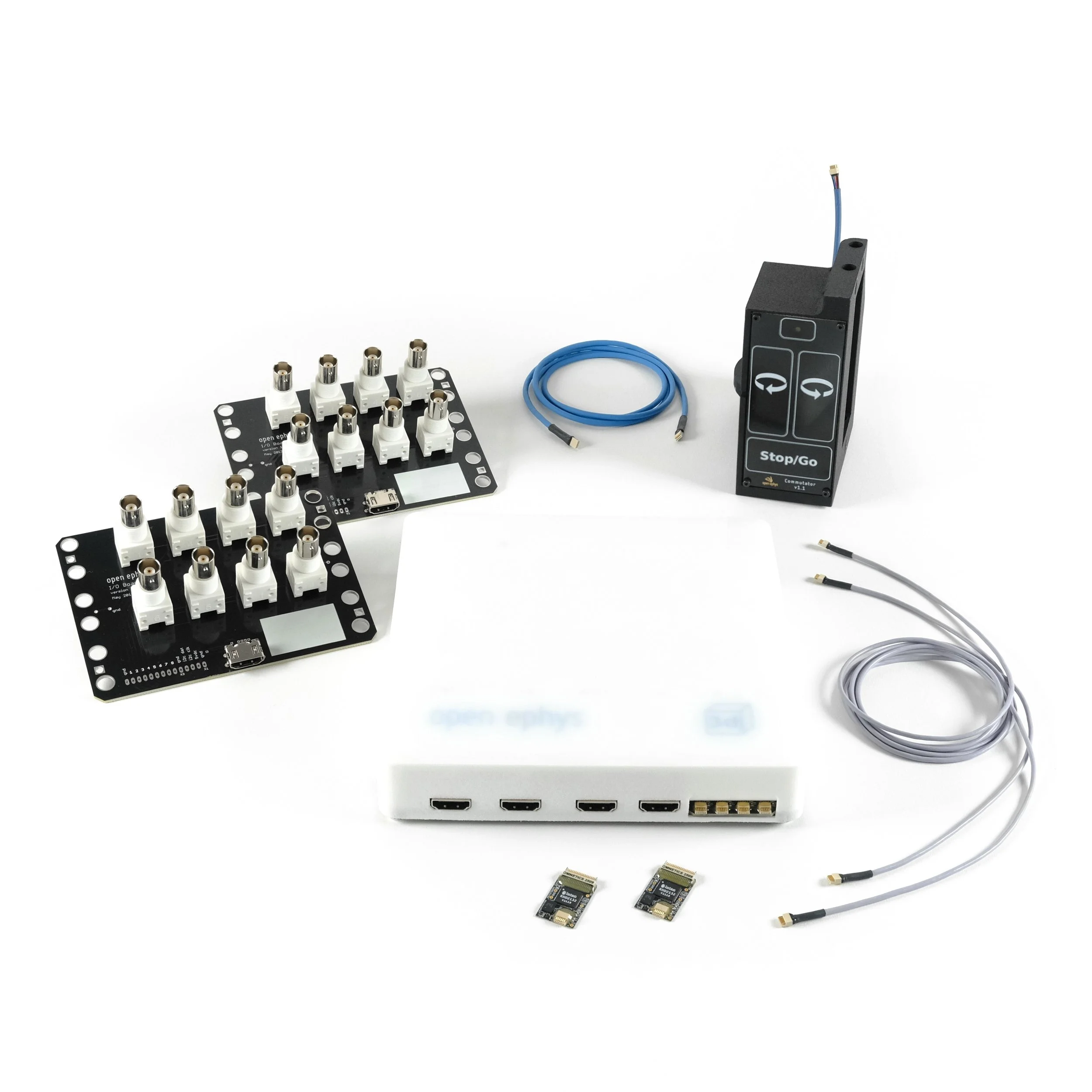

Components Included in Each Starter Bundle
| Component | Unipolar Low‑profile | Unipolar | Bipolar | Function |
|---|---|---|---|---|
| OEPS-9116 | OEPS-9115 | OEPS-9114 | ||
| [OEPS-9029] Open Ephys Acquisition Board (3rd Gen) | 1 | 1 | 1 | Acquires and timestamps data. |
| [OEPS-5900] Power Supply 5V 2A 10W | 1 | 1 | 1 | Powers the Acquisition Board. |
| [OEPS-5110] USB3 Cable (A to Micro B) 1.8m | 1 | 1 | 1 | Connects the Acquisition Board to the computer. |
| [OEPS-6571] Low-profile SPI Headstage 64ch with 3D (Hirose) | 2 | - | - | Amplifies and digitizes data. Read about the Differences Between Headstages above to understand what choice to make. |
| [OEPS-6576] SPI Headstage 32ch with 3D (Omnetics) | - | 2 | - | |
| [OEPS-6577] SPI Headstage 16ch bipolar with 3D (Omnetics) | - | - | 2 | |
| [OEPS-5553] SPI Ultra Thin Tether (0.9m) | 2 | 2 | 2 | Connects a headstage to the Torque-free SPI Commutator. |
| [OEPS-7761] Torque-free Commutator - SPI | 1 | 1 | 1 | Avoids tether tangling. |
| [OEPS-5550] SPI Standard Tether (0.9m) | 1 | 1 | 1 | Connects the Torque-free SPI Commutator to the Acquisition Board. |
| [OEPS-5103] Cable (USB Plug A to Micro B) 16.4ft (5.0m) | 1 | 1 | 1 | Connects the Torque-free SPI Commutator to the computer. |
| [OEPS-6501] I/O Board | 2 | 2 | 2 | Provides digital and analog I/O. |
| [OEPS-5190] HDMI Cable (1.0m) | 2 | 2 | 2 | Connects an I/O Board to the Acquisition Board. |
| OEPS-9157 | OEPS-9156 | OEPS-9155 | ||

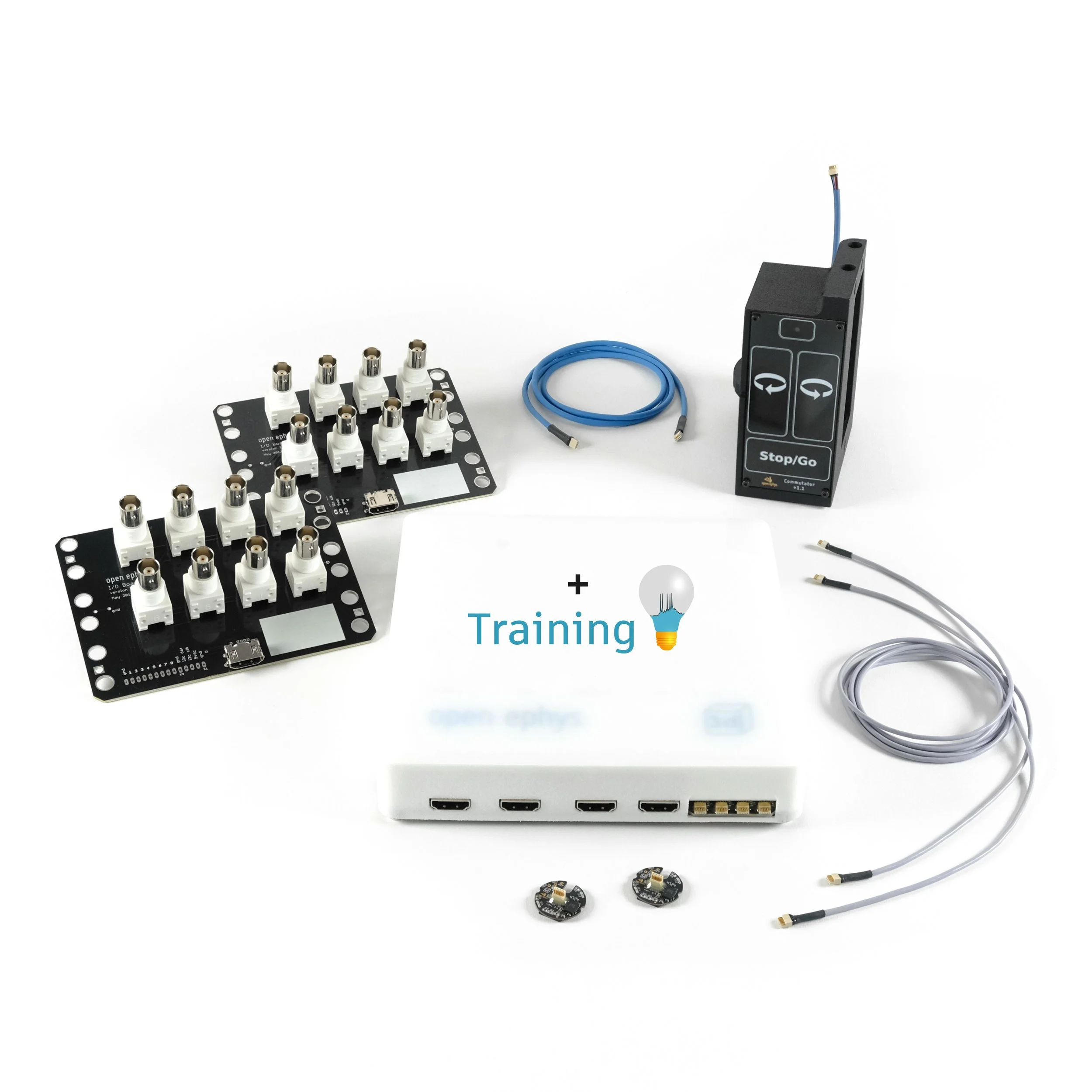

| [OEPS-8401] Remote Training (T01) | Yes | Yes | Yes | Provides in-depth training on acquisition hardware, software, and data structure. |
Custom Starter Bundles
We can further customize each bundle in case you require a different headstage combination, headstages from the Intan range, or SPI tethers of a different length. Contact info@oeps.tech if you require a custom bundle.
