I/O Board


I/O Board

from 12.50

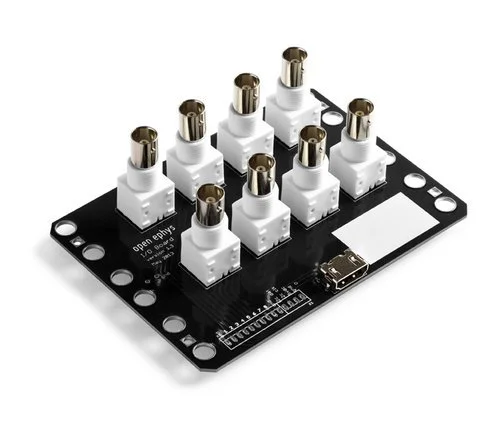

The I/O board is used for synchronizing the Open Ephys acquisition board with external devices. You can either purchase the bare PCB (without connectors) or the assembled version.

Package includes:

  • 1 I/O board PCB
  • 1 HDMI cable (on assembled version)

If you purchase the version without connectors, you must supply:

  • 8 through-hole vertical BNC connectors per board ($2.73 each, #A97564-ND
  • 1 surface-mount HDMI connector per board ($0.73, #609-4614-1-ND cut tape)
  • One thin, passive HDMI cable (type A to type A)

For assembly instructions, please refer to the Open Ephys wiki.

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via e-mail.

With connectors?:
