SKU: OEPS-5550

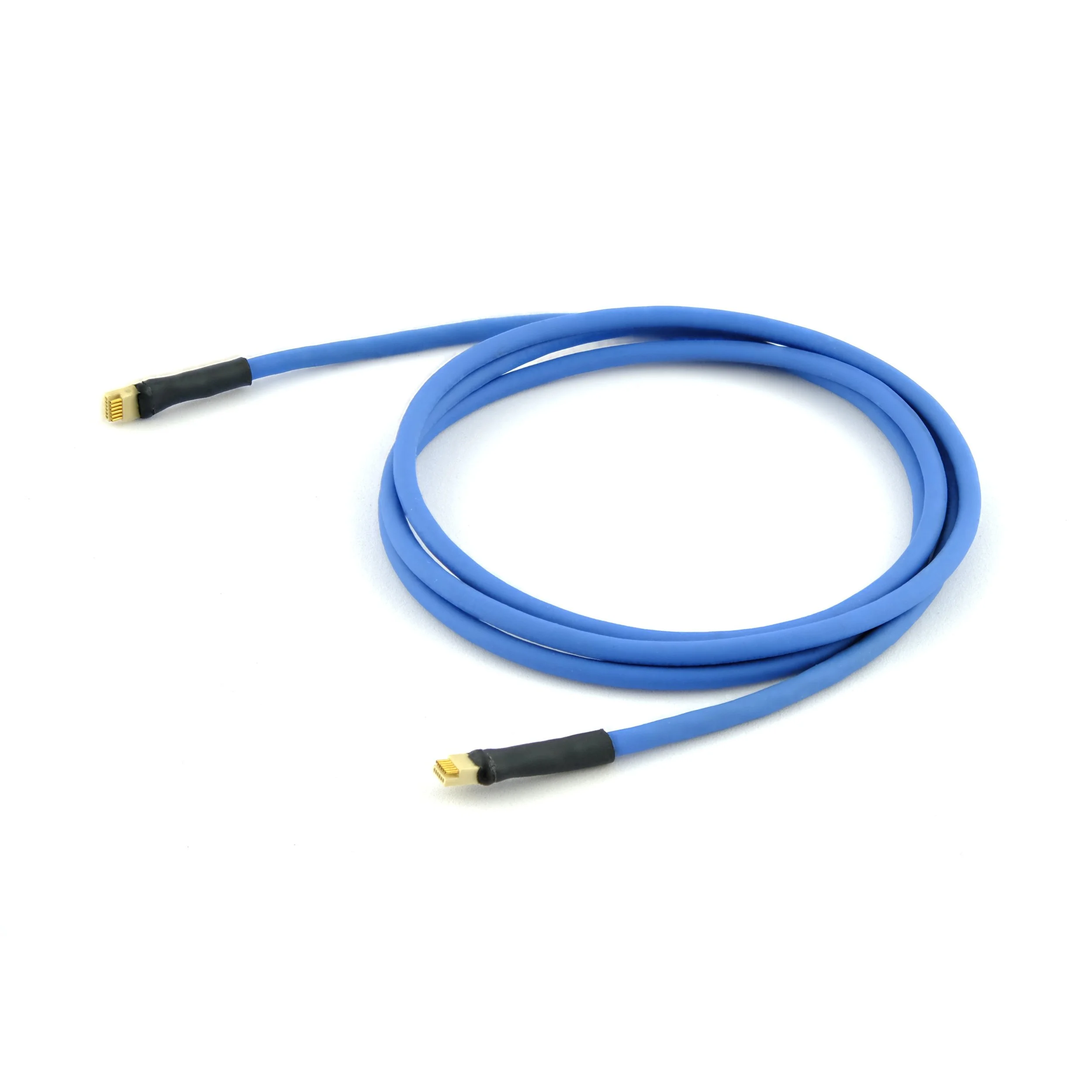

Standard SPI tether to power and transmit data between headstage and Acquisition Board using the Serial Peripheral Interface (SPI) protocol.

To be used between a variety of SPI headstages and the Acquisition Board.

Characteristics:

• Length: 3 ft / 0.9 m

• Mass: ~7.5 g

• Outer diameter: 2.9 mm

• Outer jacket material: 0.33 mm thermoplastic elastomer (TPE)

• Headstage connector type: Omnetics PZN-12 polarized nano

• Connector size: 4.5 mm x 4.3 mm x 2.0 mm

• Record system connector type: SPI

Please refer to this connectivity list to verify the compatibility between your headstage and this tether.
