SKU: OEPS-7746

32-channel bi-directional recording and stimulation headstage for the ONIX acquisition system.

Can be used to record from and stimulate the brain using silicon probes that have a compatible Omnetics connector, other passive probes using an adapter or wire electrodes via an electrode interface board such as the OEPS-6809 ShuttleDrive 32-ch Omnetics EIB.

Key aspects:

• Fully compatible with ONIX to achieve submillisecond closed loop stimulation times

• Record and stimulate up to 32 channels per headstage

• Provides ephys-synchronized stimulation timing data

• 30 kHz sampling frequency

• Omnetics A79025 (36 pins, 4 guide posts) connector

• Uses a mini-coax 1.1 mm diameter tether (U.FL to SMA)

Package includes:

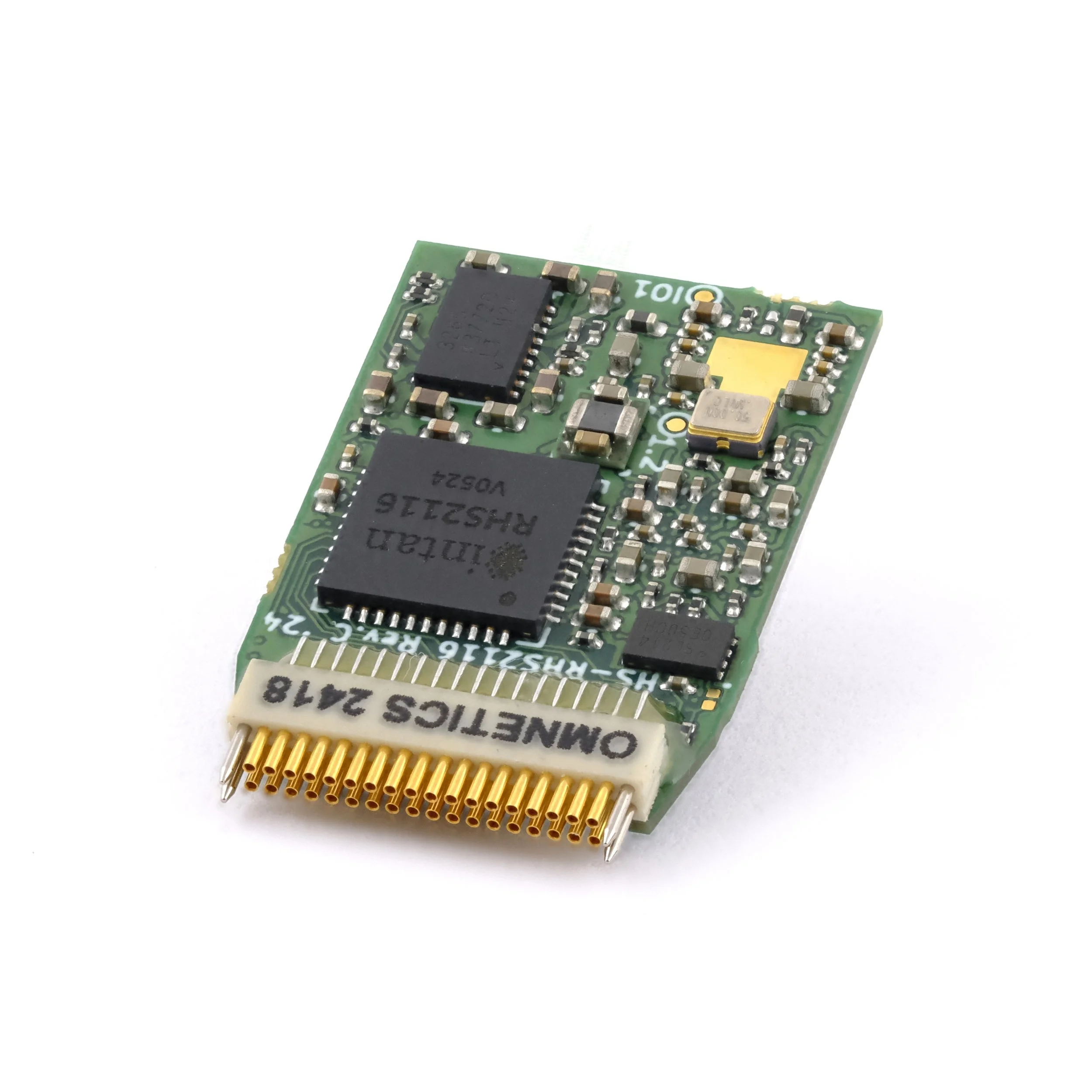

• 1x OEPS-7746 ONIX Headstage 32ch Stim/Record

• 1x OEPS-5501 Coaxial Tether (U.FL to SMA) mini 4.9ft (1.5m)

Please note this headstage does not have real-time, 3D orientation or 3D position tracking capabilities.

Note: The ground and reference connections are tied together by default using a 0-Ω jumper resistor that can be removed.
