SKU: OEPS-7520

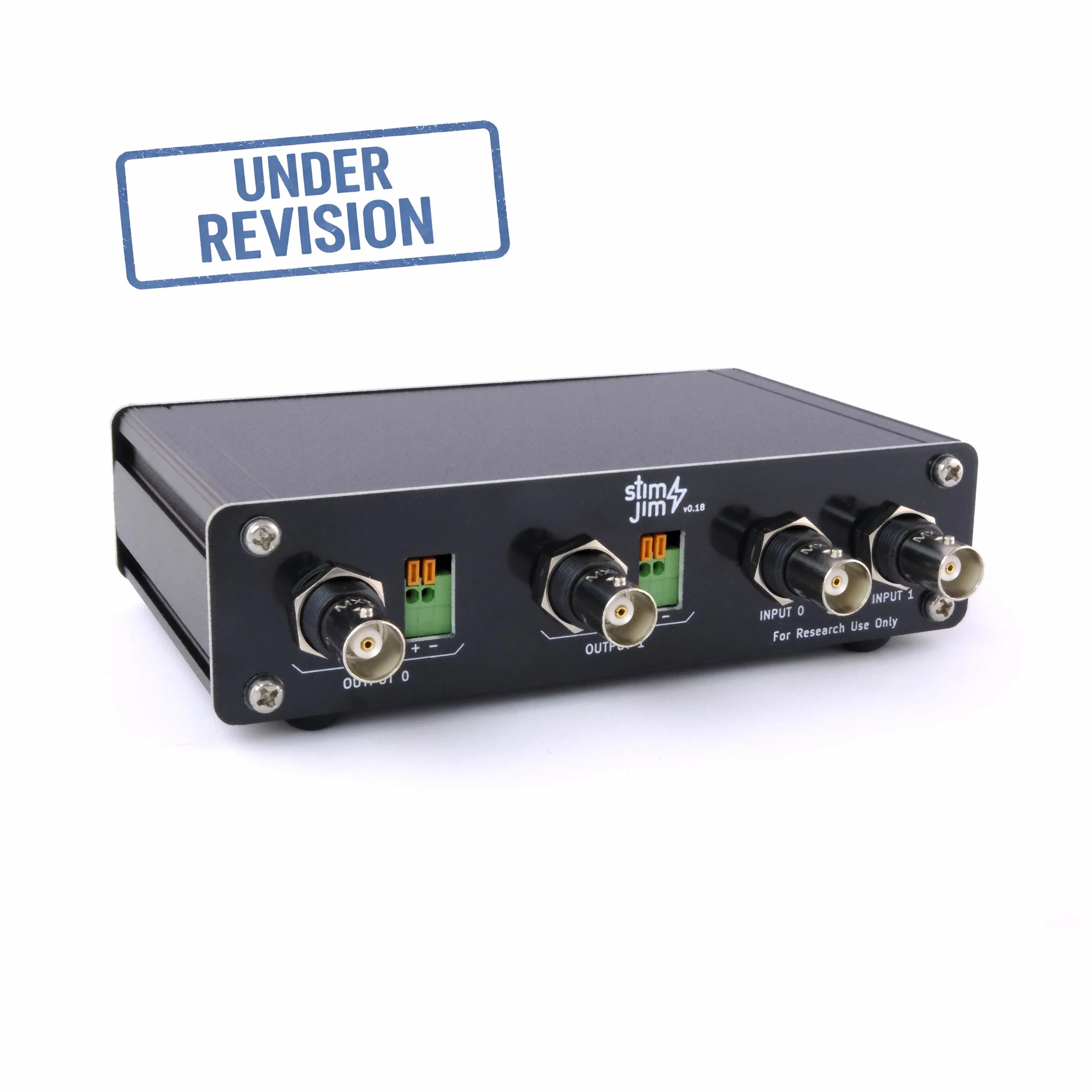

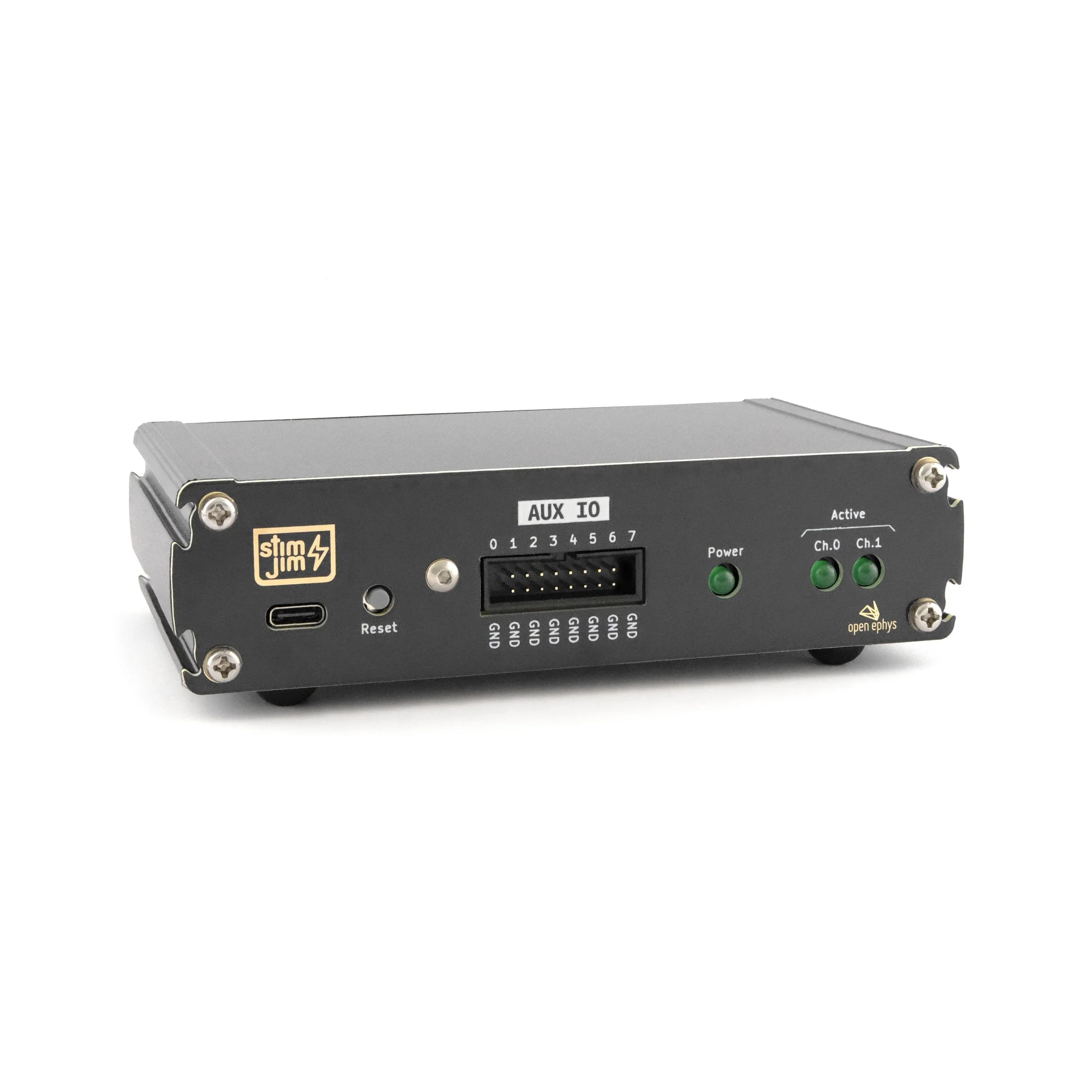

StimJim is a dual-channel electrical stimulator for extracellular stimulation and lesioning.

• Generates arbitrary current or voltage waveforms with microsecond temporal resolution and microampere or millivolt scale precision.

• Both output channels are electrically isolated from earth ground and each other to reduce electrical stimulation artifacts during concurrent electrophysiological recordings.

• Includes automatic charge-balancing circuitry to prevent tissue damage due to charge imbalances.

• Stimulus current and voltage are measured on each channel and reported to ensure correct stimulus delivery and calculate in-situ electrode resistance.,

• Two triggerable channels for integration with external devices. .

• Switch between selection of voltage or current stimulation on-the-fly.

• The pre-programmed  StimJim Pulser Arduino sketch allows  up to 100 user configurable pulse train waveforms that can be configured with a simple set of serial commands. Alternatively,  you can program your own controller using the Arudino library for low-level control over all circuit functionality.

• Community software resources are available, such as the StimJim Isolator and StimJim GUI.

For more detailed information, check this page.

Package includes:

• 1x StimJim

This device requires additional components to operate. Please check the device connectivity list to purchase the cables you might need.

If you need a formal quote and/or prefer bank transfer as the payment method, please contact us via e-mail.
